- 6Gb/s Mini-SAS, 12Gb/s Mini-SAS HD backplane supported

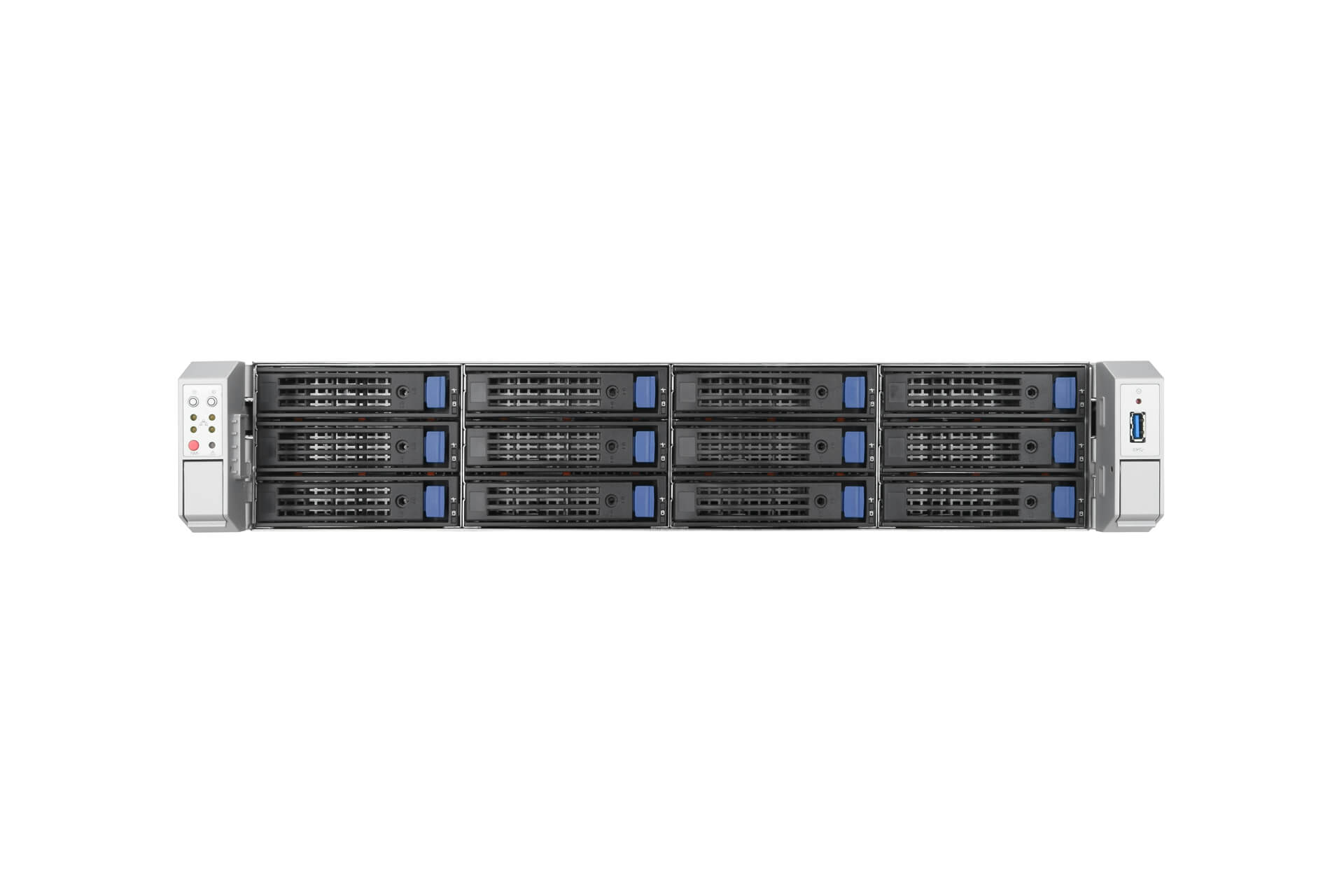

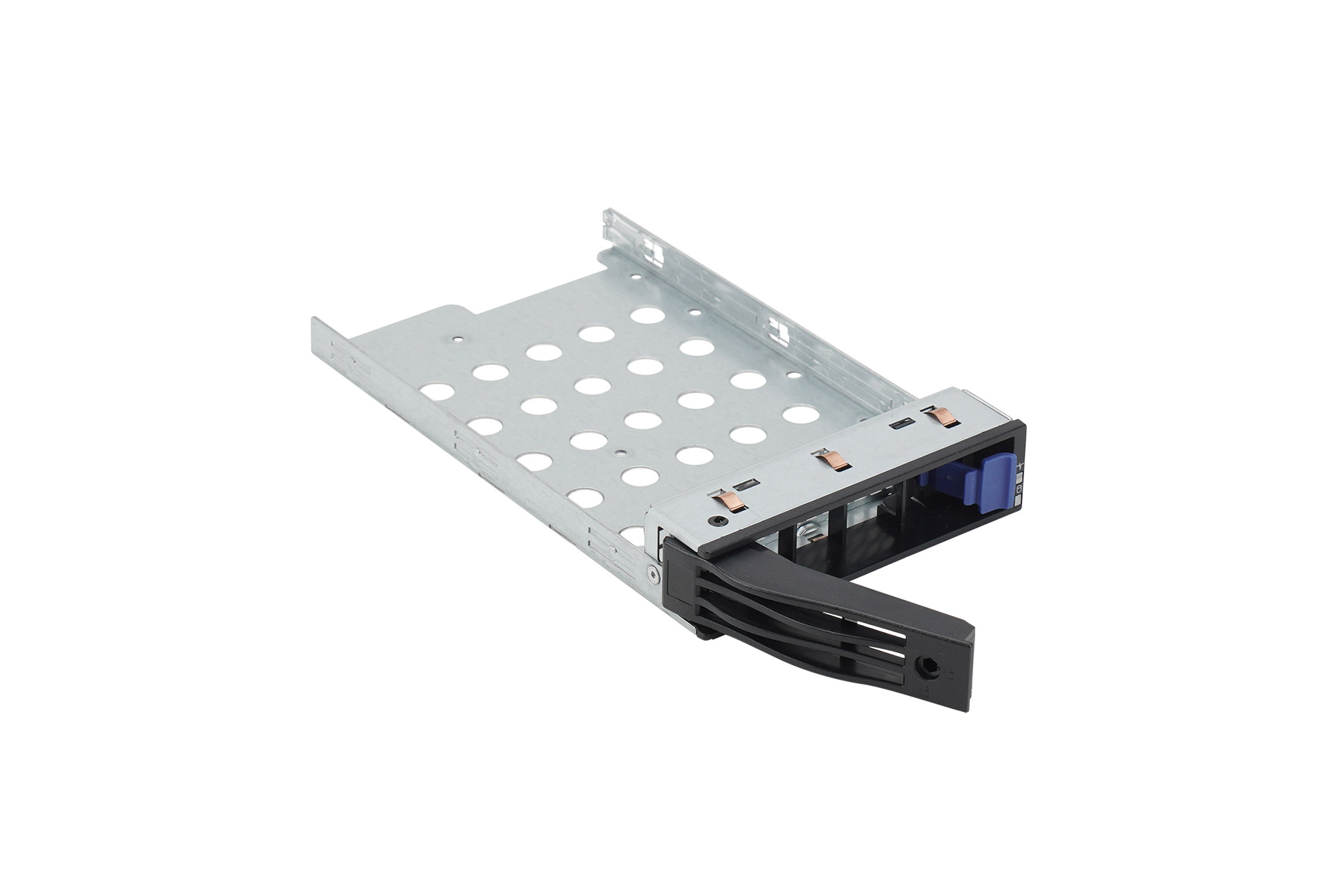

- External 2.5″/3.5″ x 12 hot-swap HDD trays with lock supported

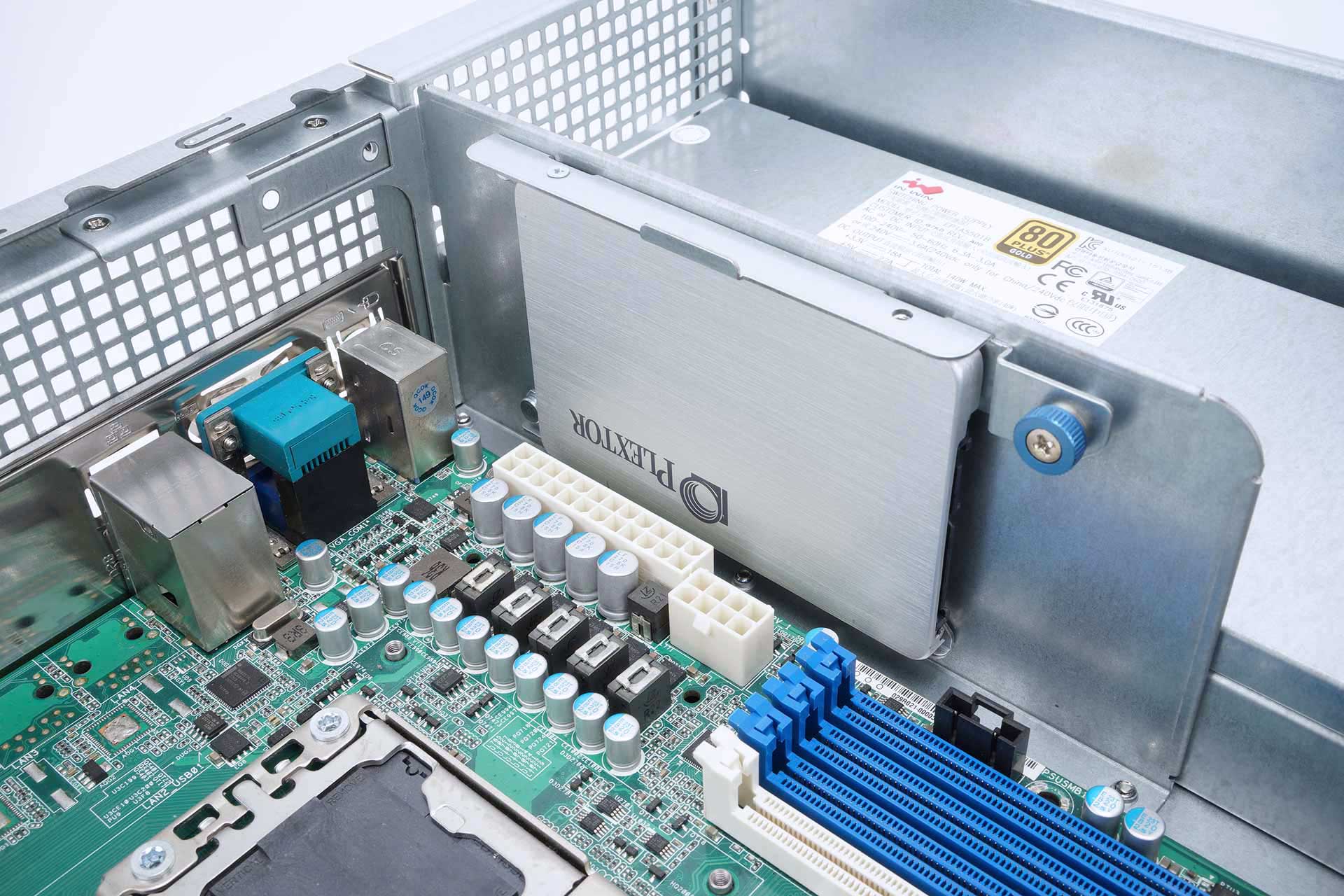

- Internal 2.5″ HDD x 1

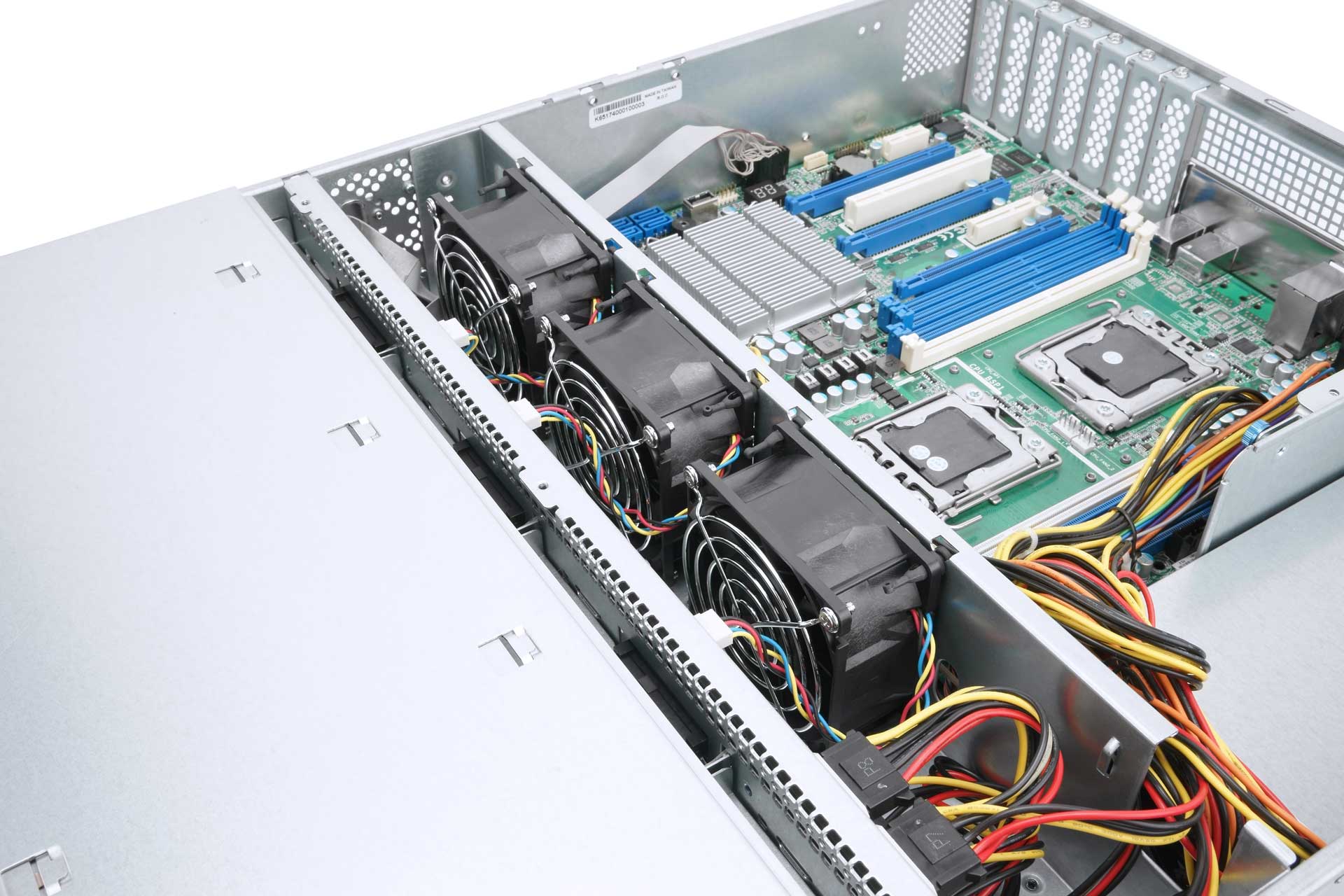

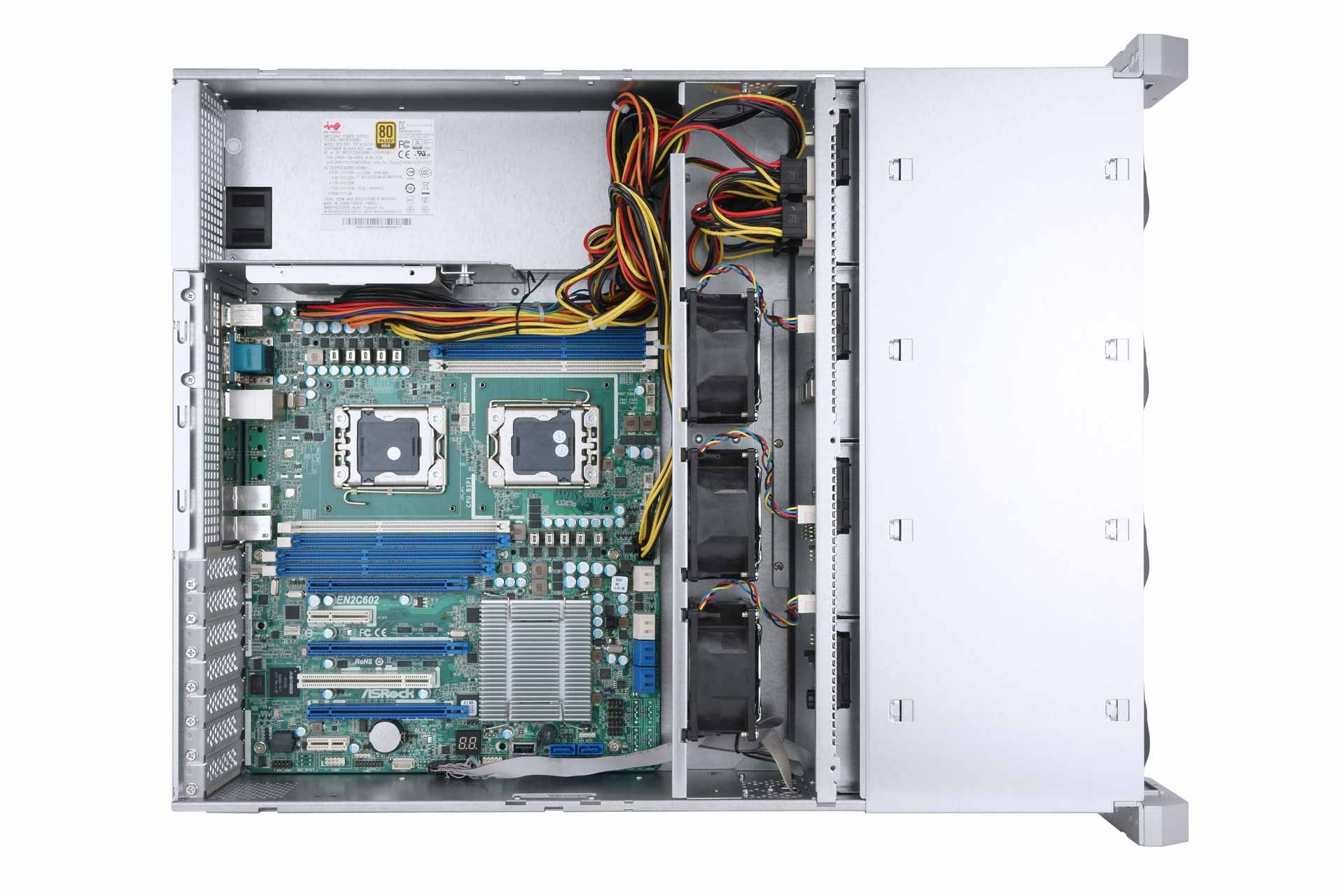

- Easy-swap 80 x 38mm PWM fans with anti-vibration mechanism

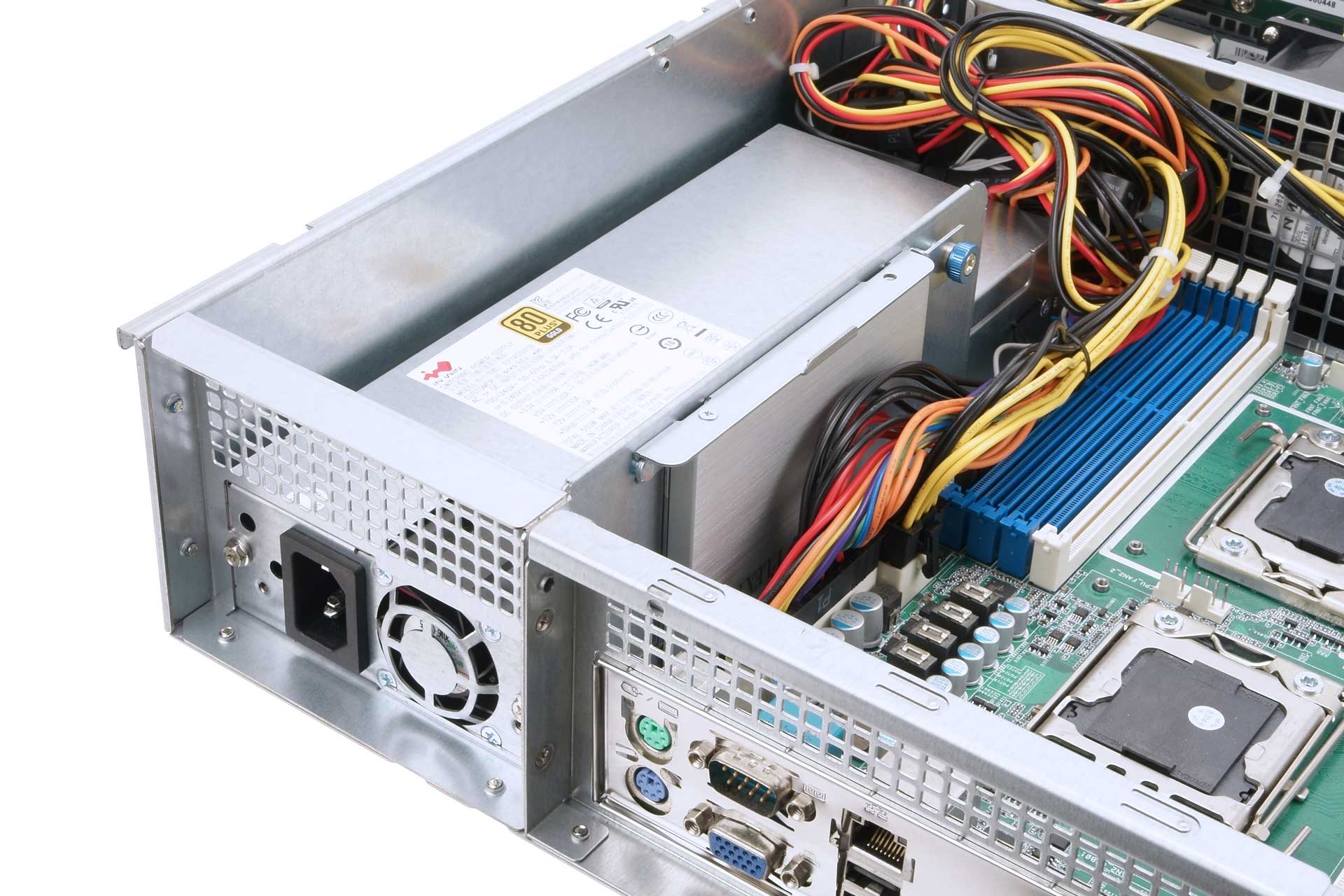

- Single or redundant 80 plus gold level high-efficiency power supply
Specifications
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX (12″ x 9.6″), CEB (12″ x 10.5″) |
| Drive Bay | • External: hot-swap 2.5″/3.5″ x 12 • Internal: 2.5″ x 1 |
| Power Supply | Supports: • Form factor: Single, 2U Redundant, CRPS • Watt: Single 500W, Redundant 500W, CRPS 550W |
| Indicator | Power status, HDD, LANs, system fail activity LEDs |
| Front Control Panel | Power switch, ID Switch, System Reset, NMI, USB 3.0 x 1 |
| Chassis Security | Intrusion switch (optional) |
| Backplane-1 | • Host: 6Gb/s Mini-SAS (SFF-8087) x 1 • HDD: SAS/SATA x 4 |
| Backplane-2 | • Host: 12Gb/s Mini-SAS HD (SFF-8643) x 3 • HDD: SAS/SATA x 12 |
| Backplane-3 | • Host: 12Gb/s Mini-SAS HD with expander (SFF-8643) x 2 • HDD: SAS/SATA x 12 |
| SAS 12G Expander | Supports LSI expander |
| Cooling Fan | Supports 80 x 38mm PWM easy-swap fan x 3 |

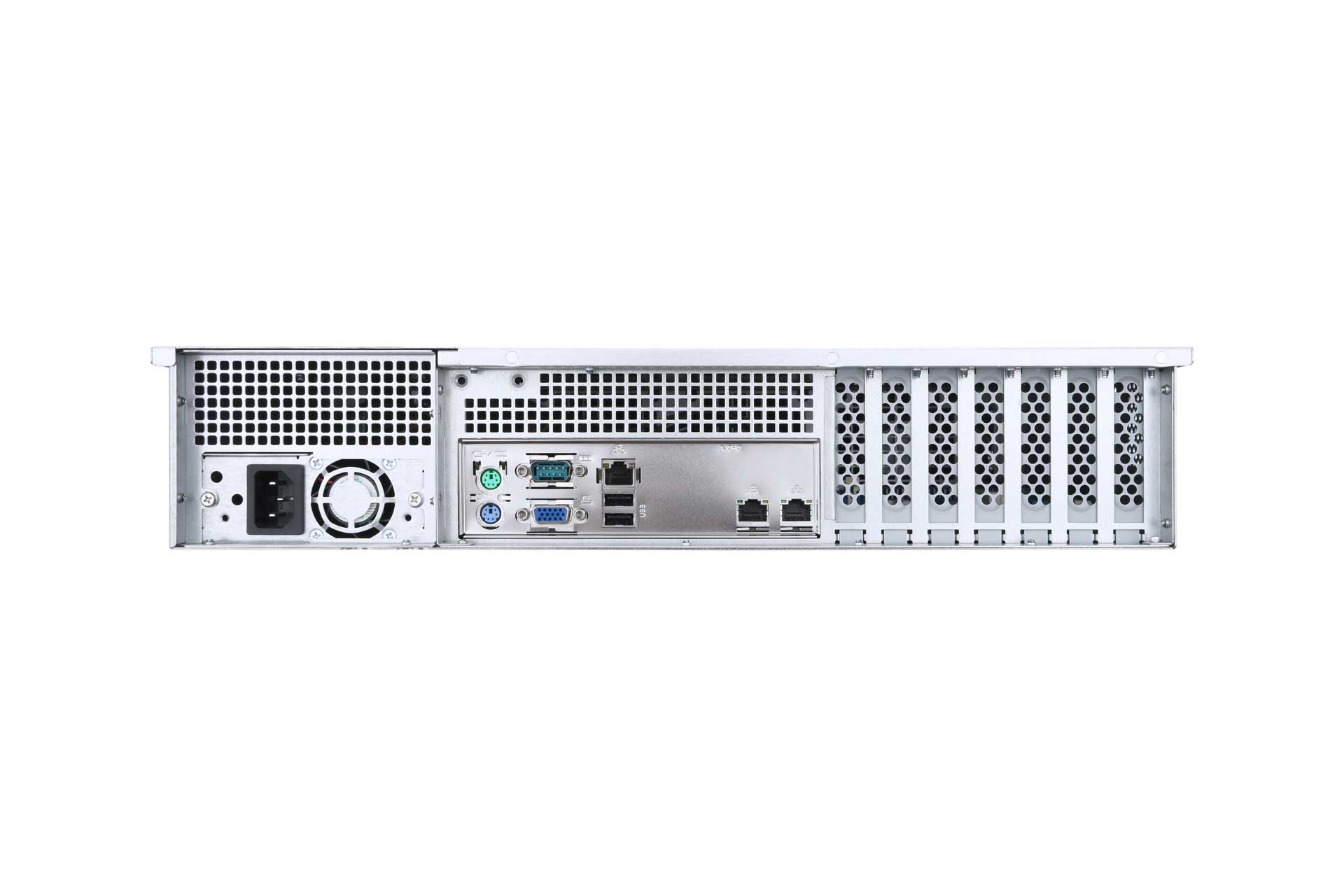

| Expansion Slot | Low-profile PCI slot x 7 |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 28″ tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 572.7 x 444.2 x 87mm (22.55″ x 17.49″ x 3.43″) |
| Package Dimensions (DxWxH) | 823 x 590 x 187mm |
| Weight (Chassis Only) | • Net weight: 10.56kg • Gross weight: 13.52kg |
| Cubic Feet | 3.21 |
| Container Information | Single packing with pallets: • 20′: 200pcs • 40′: 460pcs • 40′ HQ: 506pcs |
| 6Gb/s Backplane Specifications | |
|---|---|
| 12Gb/s Backplane Specifications | |
| 12Gb/s Backplane Specifications | |
| Backplane-1 | Mini-SAS Backplane |
| Dimensions (W x H) | 382.5 x 21mm |
| Backplane Type | Passive |
| Host Interface | Mini-SAS (SFF-8087) x 1 |
| HDD Interface | SAS/SATA x 4 |
| Backplane-2 | Mini-SAS HD Backplane |
| Dimensions (W x H) | 382.5 x 76.8mm |
| Backplane Type | Passive |
| Host Interface | Mini-SAS HD (SFF-8643) x 3 |
| HDD Interface | SAS/SATA x 12 |
| Backplane-3 | Mini-SAS HD Backplane |
| Dimensions (W x H) | 382.5 x 76.8mm |
| Backplane Type | Active with expander onboard |
| Host Interface | Mini-SAS HD (SFF-8643) x 2 |
| HDD Interface | SAS/SATA x 12 |
Download
| Item | Download | Preview |
|---|---|---|
| IW-RS212-02SN eDM |  |  |
| IW-RS212-02SN Gallery |
| – |
| IW-RS212-02SN Passive Backplane User Manual |
|
|
Optional Items
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS129500 | 28″ tool-less & ball-bearing slide rails (weight capacity 35kg) | 1 |
|
| Cable | 3RAMW4024300 | Mini SAS cable SFF-8087 to SFF-8087, length 800mm | 1 |
|
| Cable | 3RAMW4022100 | 4 x SATA to Mini SAS cable SFF-8087, length 1000mm | 1 |
|
| Cable | 3RAMW4031700 | Mini SAS 12G cable SFF-8643 to SFF-8643, length 800mm | 1 |
|
| Power Supply | 3RAMAP025400 | 1U Single 500W, 80 Plus Gold | 1 |
|
| Power Supply | 3RAMAP019900 | 2U 1+1 Redundant 500W, 80 Plus Silver | 1 |
|
| Power Supply | 2RAKAP002000 | CRPS 550W, 80 Plus Platinum | 1 |
|
| Backplane | 2RAKVI008700 | 6Gb/s Mini-SAS Backplane | 3 | |
| Backplane | 2RBTVI000402 | 12Gb/s Mini-SAS HD Backplane | 1 | |
| Backplane | 2RBTVI000901 | 12Gb/s Mini-SAS HD with expander Backplane | 1 | |
| Fan | 3RAMFB006302 | 80 x 25mm, PWM, 4500RPM | 1 |
|
| Fan | 3RAMFB005801 | 80 x 38mm, PWM, 5500RPM | 1 |
|
| Others | 3RAMRW011300 | Intrusion switch / 800mm | 1 |
|
| Others | 2RAKIP008401 | Mesh front panel | 1 |
|
| Others | 2RAKIP004301 | Iron front panel with silver coating | 1 |
|
