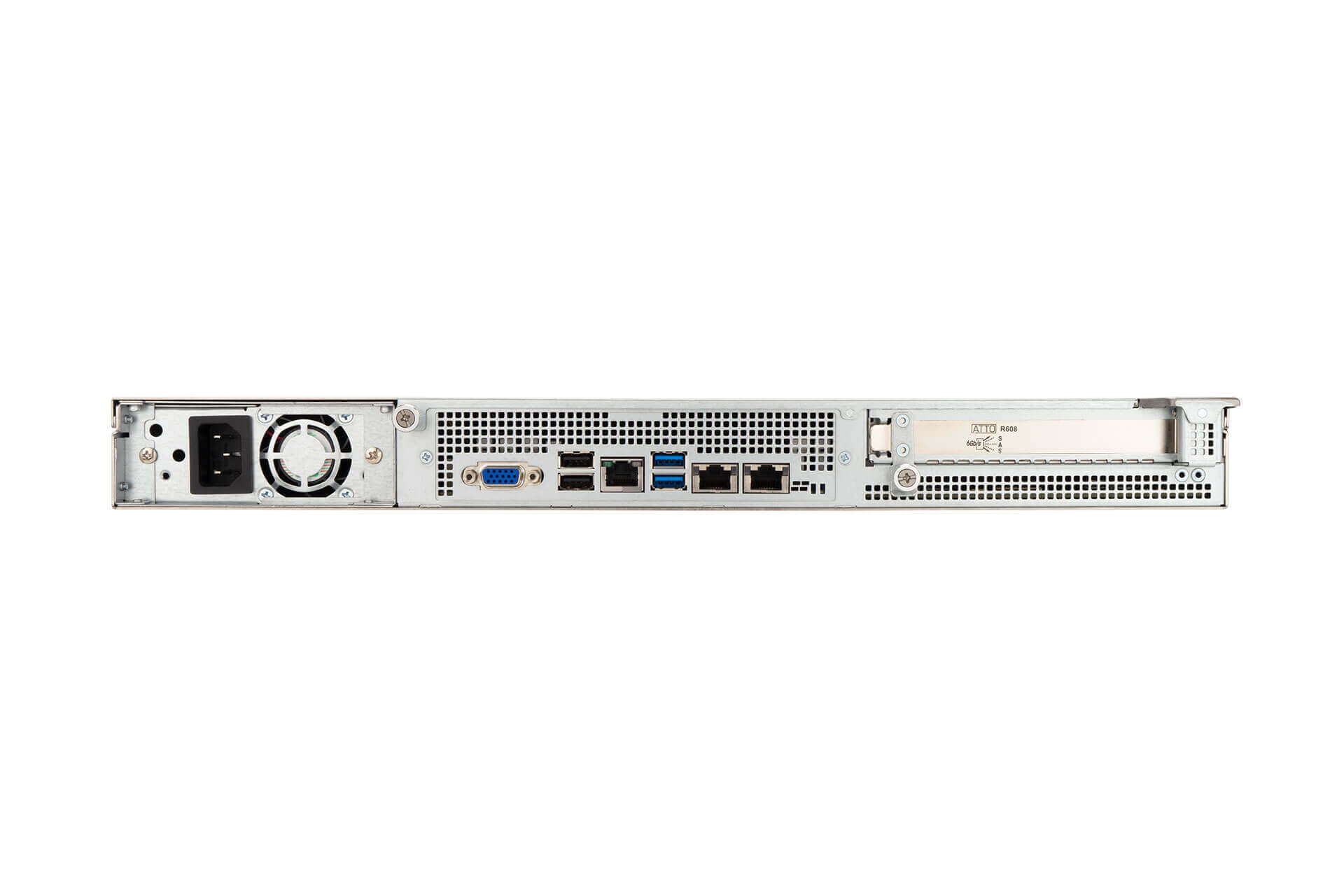

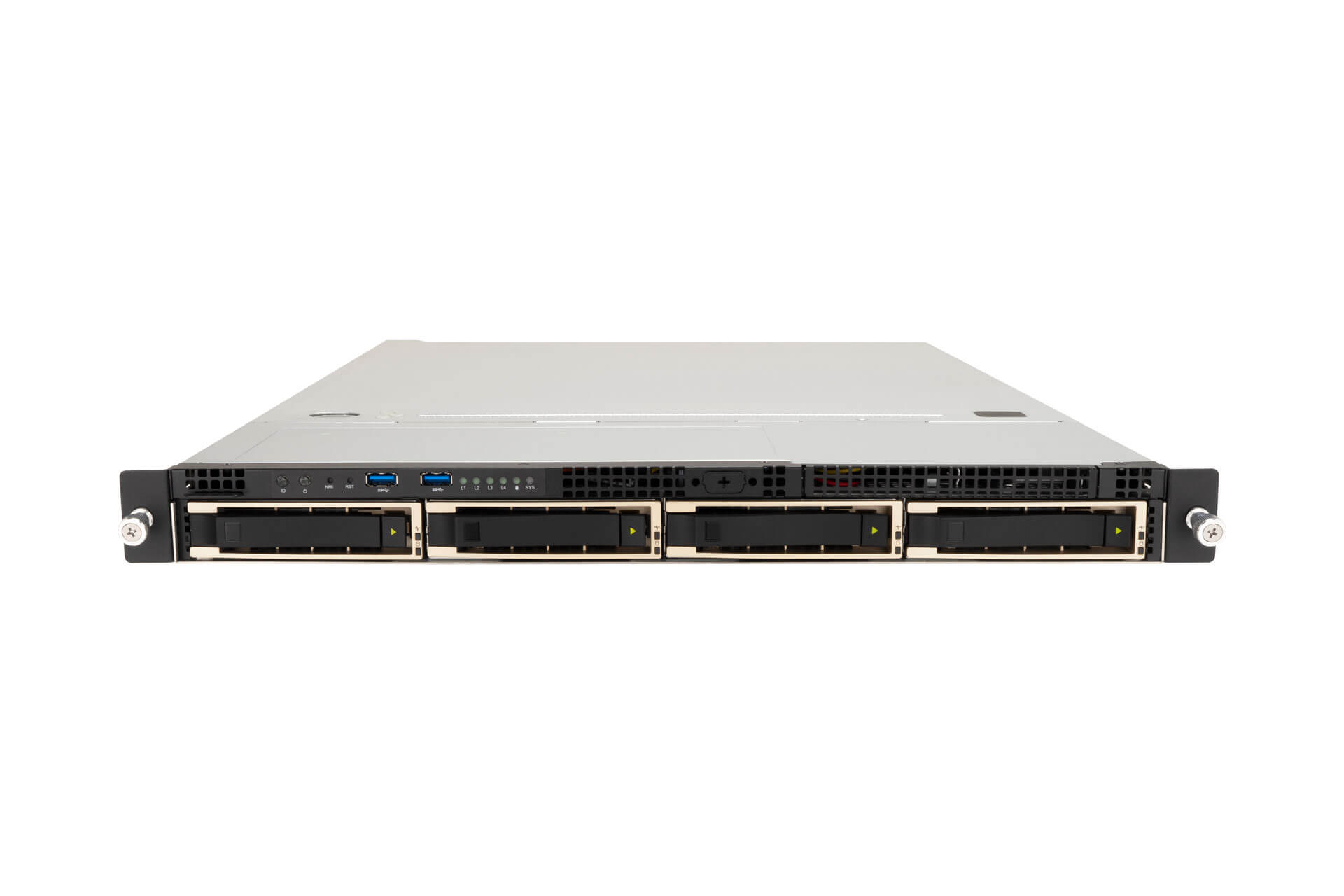

IW-RS104-07

1U NVMe Hybrid Storage Server
  • Intel® Xeon Scalable family compliant
  • Backplanes with Mini-SAS HD, Oculink or Slimline connectors

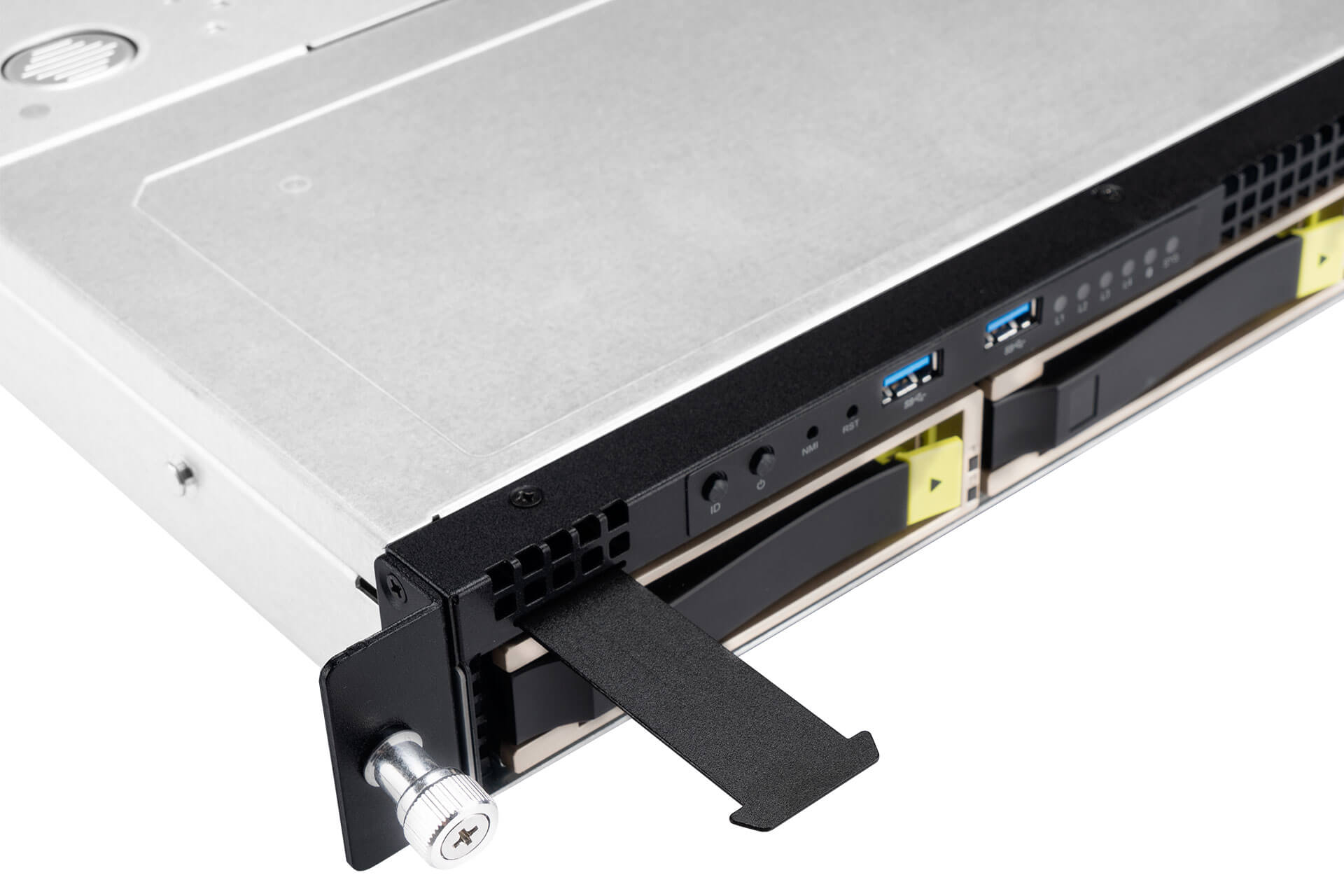

  • 1U with 4 x hot-swappable 3.5″ NVMe/SAS/SATA bays
  • Supports maximum 7 x 2.5″ SSD drives (4 x external drives and 3 x internal drives)

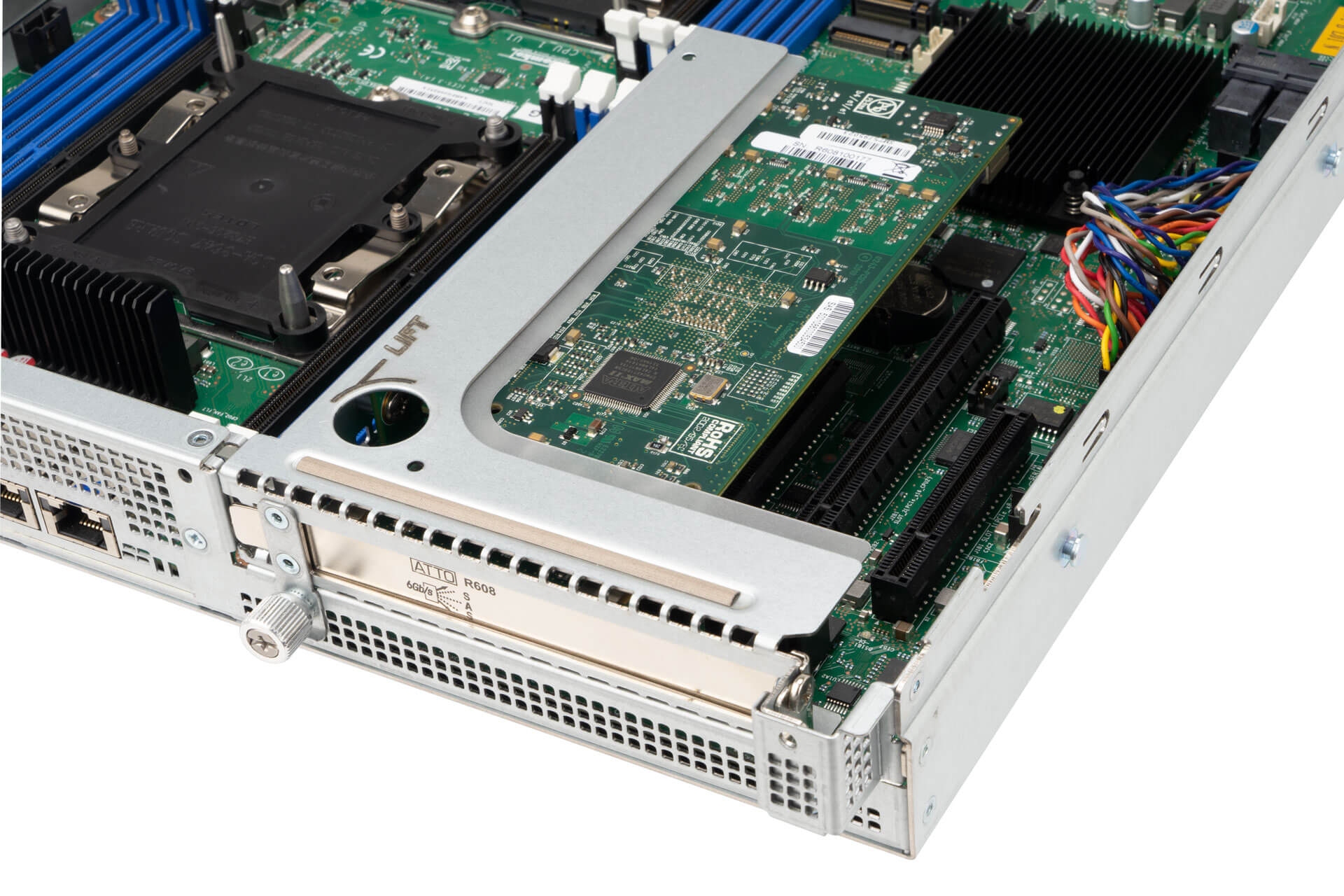

  • Supports full-height PCIe slot x 1 (via riser card)
  • Low acoustic noise and reduced vibrations for greater reliability
  • Supports single or 1U 1+1 Redundant PSU
  • Customizes the I/O Shield back plate for specific motherboards with SGCC material
Specifications
Specification
Industry StandardEIA-RS310D
M/B Form FactorATX (12″ x 9.6″), CEB (12″ x 10.5″), EEB (12″ x 13″)
Drive Bay• External: supports slim ODD x 1
supports 2.5″/3.5″ hot-swap trays x 4
• Internal: 2.5″ x 2 or x 3 (via slim ODD conversion tray)
Power SupplySupports:
• 750W 1U 1+1 redundant PSU, 80 Plus Platinum
• 650W 1U single PSU, 80 Plus Gold
IndicatorPower LED, LAN1/LAN2/LAN3/LAN4 LED, System LED, HDD LED, ID LED
Front Control PanelPower on/off, Reset, NMI, ID SW, USB 3.0 x 2
Backplane-1• Host: Mini-SAS HD (SFF-8643) x 1, Slimline (SFF-8654) x 4
• HDD: NVMe/SAS/SATA x 4
Backplane-2• Host: Mini-SAS HD (SFF-8643) x 1, Oculink (SFF-8611) x 4
• HDD: NVMe/SAS/SATA x 4
Backplane-3• Host: Mini-SAS HD (SFF-8643) x 1
• HDD: SAS/SATA x 4
Cooling Fan40 x 56mm PWM easy-swap fans x 6, 21500RPM modular design with anti-vibration
Expansion SlotFull-height PCIe slot x 1 (via riser card)
Material• Material: SGCC
• Thickness: 1.0mm
Rail KitSupports 28″ tool-less & ball-bearing slide rails
Product Dimensions (DxWxH; Chassis Only)676.5 x 438 x 43.4mm
(26.6″ x 17.2″ x 1.7″)
Package Dimensions (DxWxH)820 x 590 x 175mm
Weight (Chassis Only)• Net weight: 7.74kg
• Gross weight: 10.53kg
Cubic Feet2.99
Container InformationSingle packing with pallets:
• 20′: 200pcs
• 40′: 460pcs
• 40′ HQ: 552pcs

Backplane-1 Mini-SAS HD & Slimline Backplane
Dimension (W x H) 416.6mm x 33mm
Backplane Type Passive
Host Interface Mini-SAS HD (SFF-8643) x 1, Slimline (SFF-8654) x 4
HDD Interface NVMe/SAS/SATA x 4

Backplane-2 Mini-SAS HD & Oculink Backplane
Dimension (W x H) 416.6mm x 33mm
Backplane Type Passive
Host Interface Mini-SAS HD (SFF-8643) x 1, Oculink (SFF-8611) x 4
HDD Interface NVMe/SAS/SATA x 4

Backplane-3 Mini-SAS HD Backplane
Dimension (W x H) 416.6mm x 33mm
Backplane Type Passive
Host Interface Mini-SAS HD (SFF-8643) x 1
HDD Interface SAS/SATA x 4
The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
The above image is for reference only. All hardware components and optional parts are not included.
Download
ItemDownloadPreview
IW-RS104-07 eDMDownloadPreview
IW-RS104-07 Gallery Download –
IW-RS104-07 Compatibility List Download Preview
IW-RS104-07 User Manual Download Preview
IW-RS104-07 Passive SAS/SATA Backplane User Manual Download Preview
Optional Items
ItemPart NumberDescriptionSupportPicture

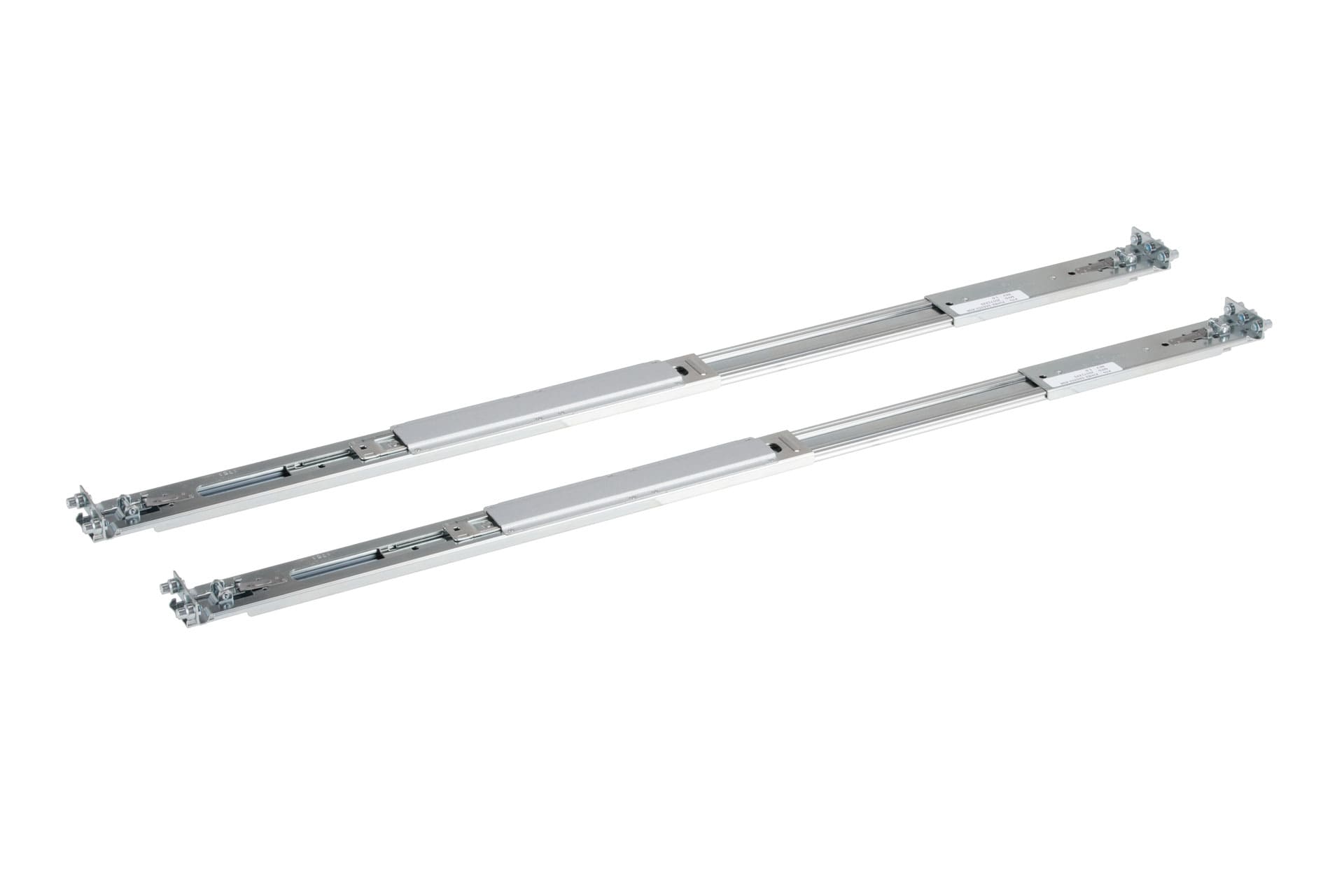

Slide Rail3RAMIS14810028″ tool-less & ball-bearing slide rail 1 Slide Rail - server system assembly

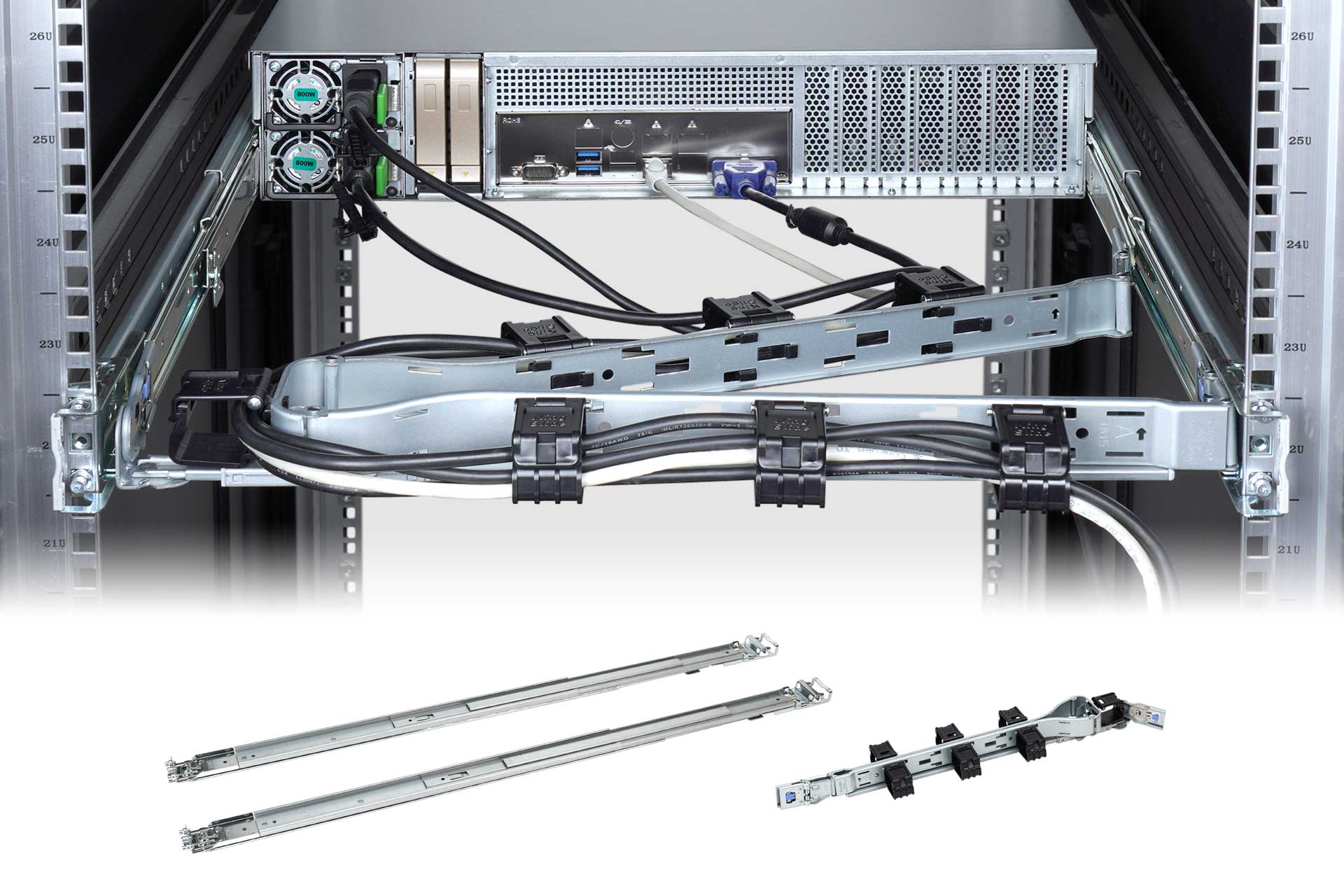

Slide Rail3RAMIS152300 / 3RAMIS15240028″ tool-less & ball-bearing slide rail with CMA support1 set Slide Rail - server system assembly
Cable3RAMW4031700Mini SAS 12G cable SFF-8643 to SFF-8643, 800mm1 Cable - server system assembly
Power Supply3RAMAP028600650W 1U single PSU, 80 Plus Gold1 Power Supply - server system assembly
Power Supply3RAMAP030400750W 1U redundant PDB power cage1 Power Supply - server system assembly
Power Supply3RAMAP028000750W 1U redundant module, 80 Plus PlatinumMax.2 Power Supply - server system assembly

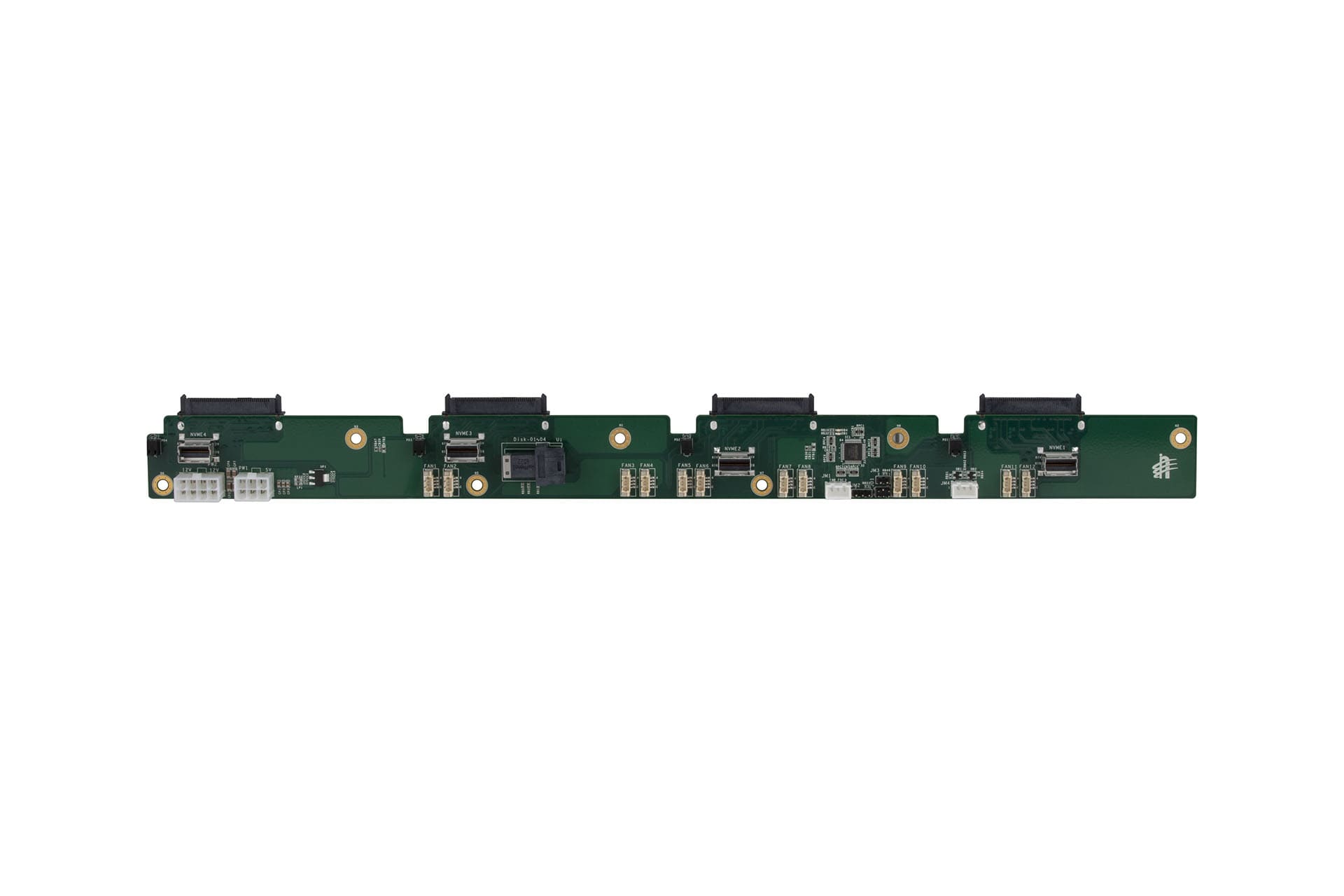

Backplane2RBTVI002301Mini-SAS HD & Slimline backplane1 Backplane - server system assembly
Backplane2RBTVI002201Mini-SAS HD & Oculink backplane1 Backplane - server system assembly

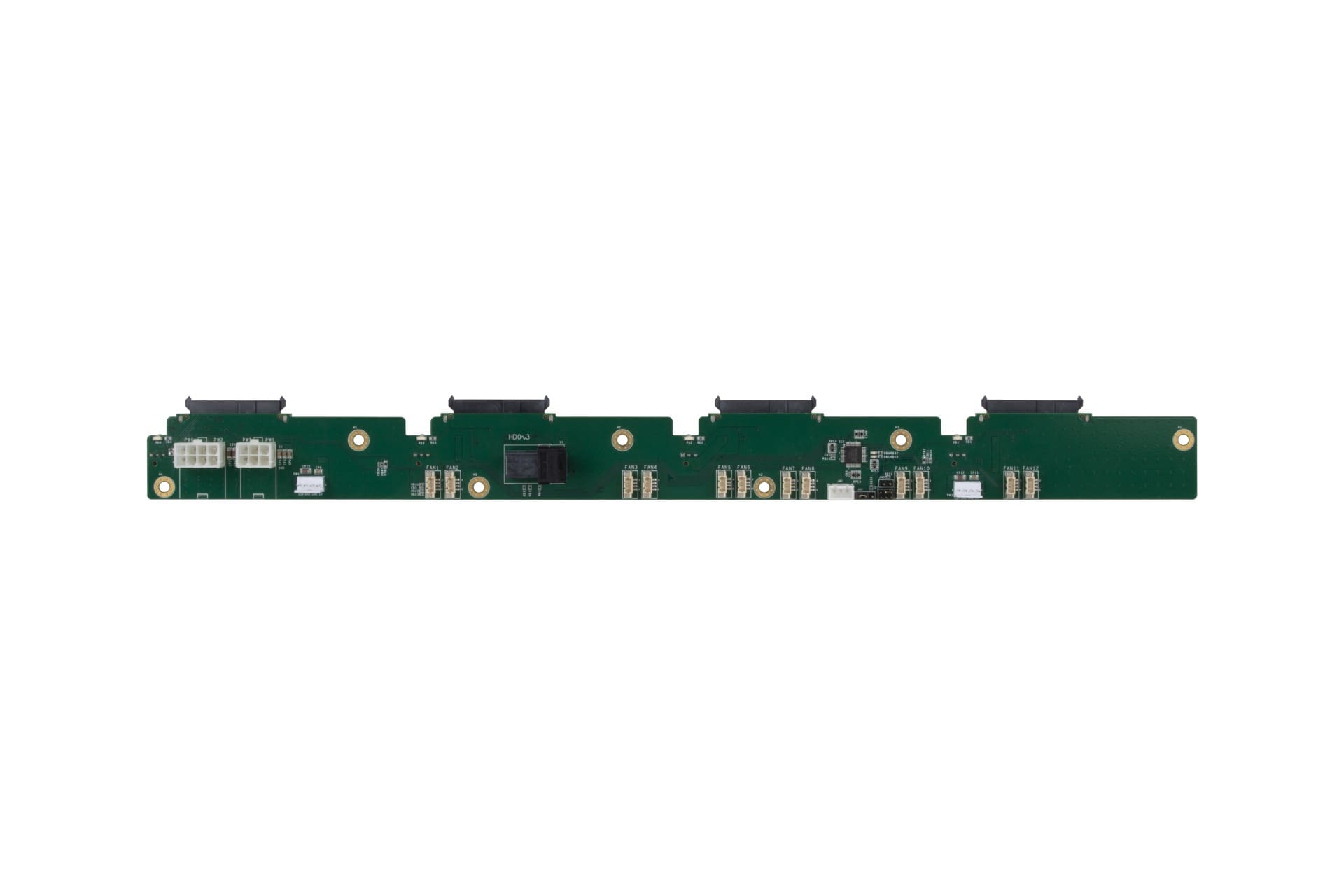

Backplane2RBTVI001900Mini-SAS HD backplane1 Backplane - server system assembly

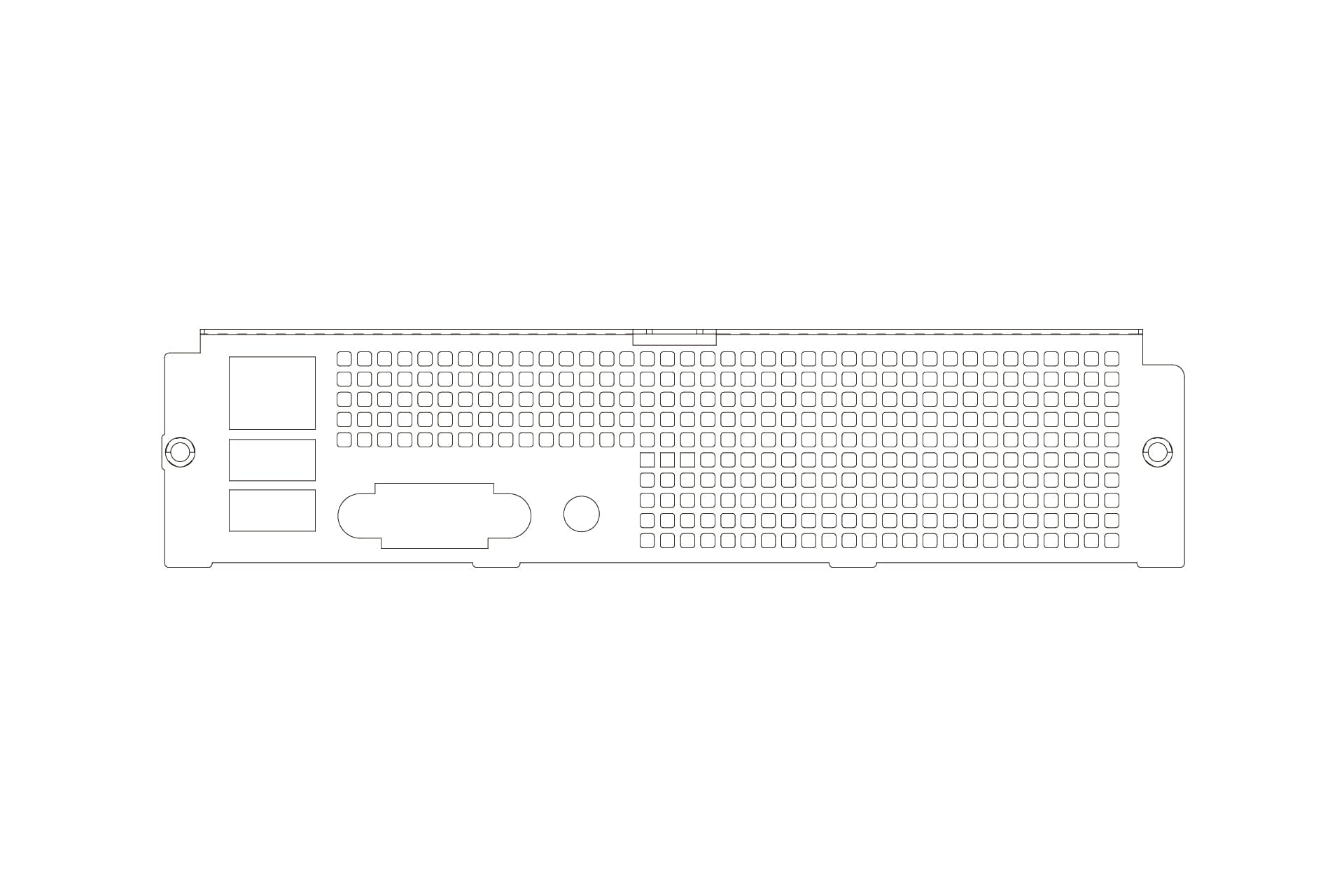

Back I/O Shield Plate2RAKIQ020900Rear I/O shield- ASRock EP2C624D16NM1 Back I/O Shield Plate - server system assembly

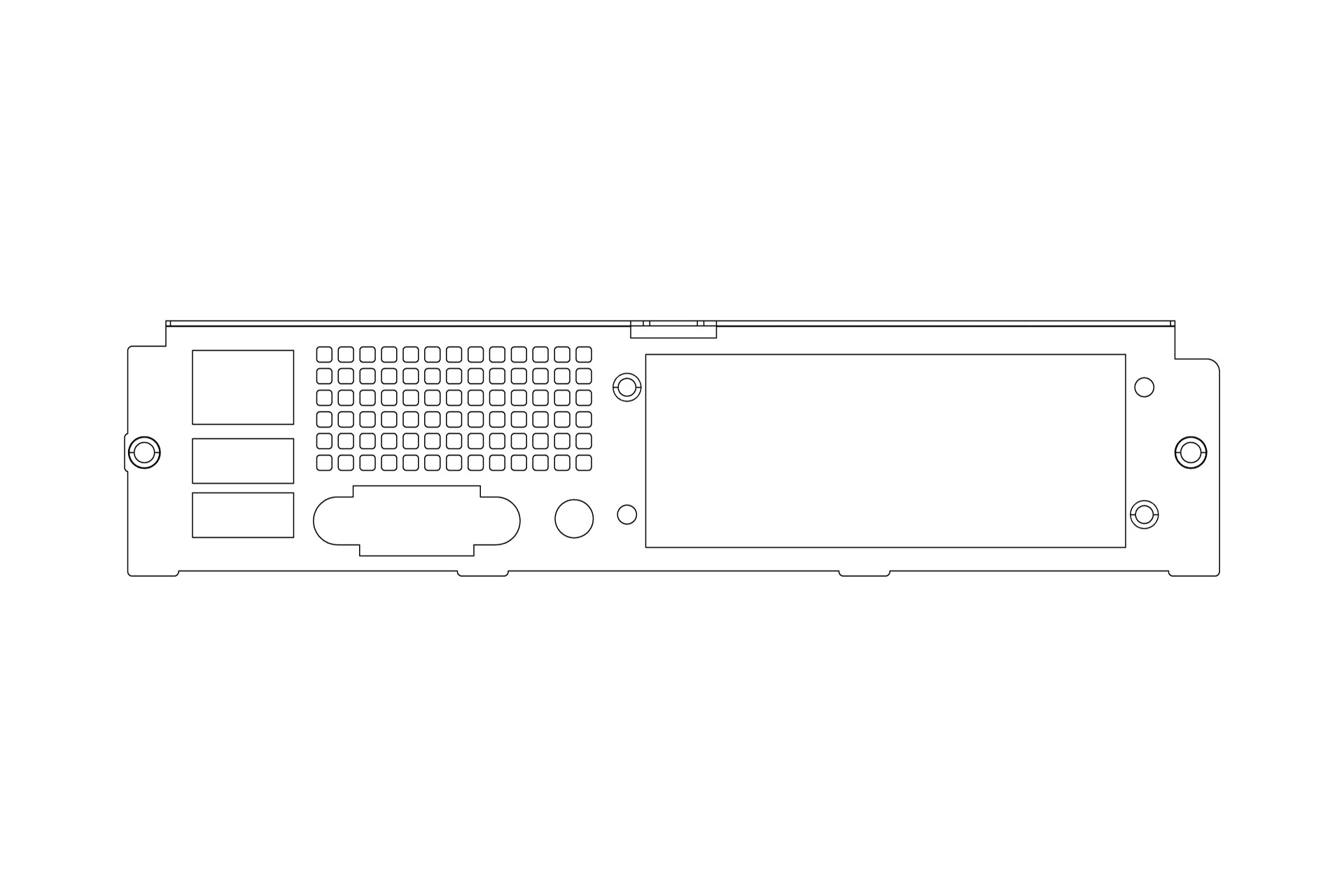

Back I/O Shield Plate 2RAVIQ039500 Rear I/O shield- ASRock EP2C624D16NM w/Mezzing1 Back I/O Shield Plate - server system assembly
Back I/O Shield Plate2RAVIQ051200 Rear I/O shield- ASRock EP2C612D16C-4L 1 Back I/O Shield Plate - server system assembly
Back I/O Shield Plate2RAVIQ051300 Rear I/O shield- ASRock EP2C622D16-2T1 Back I/O Shield Plate - server system assembly

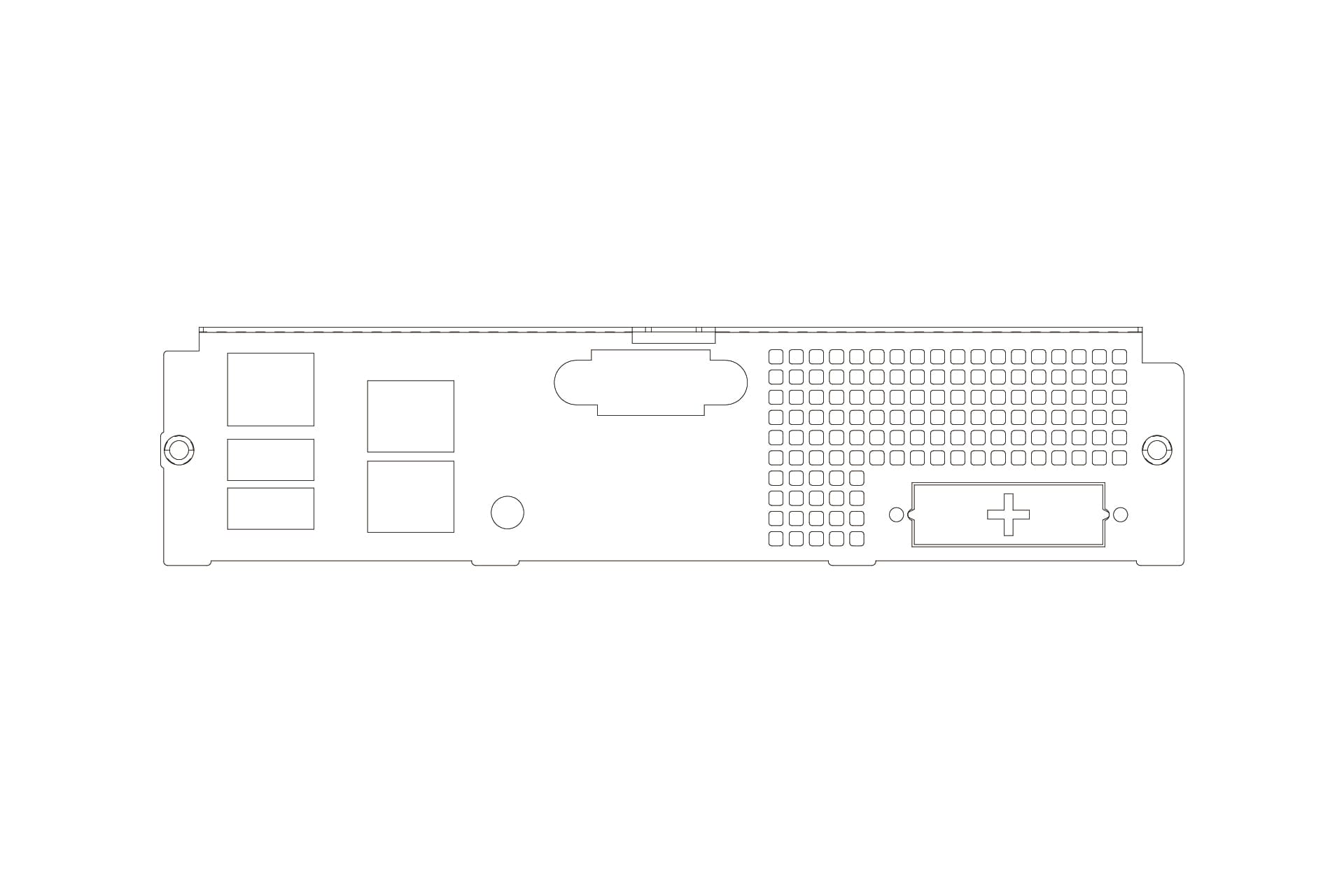

Back I/O Shield Plate2RAKIQ020800Rear I/O shield- ASUS Z11PR-D161 Back I/O Shield Plate - server system assembly

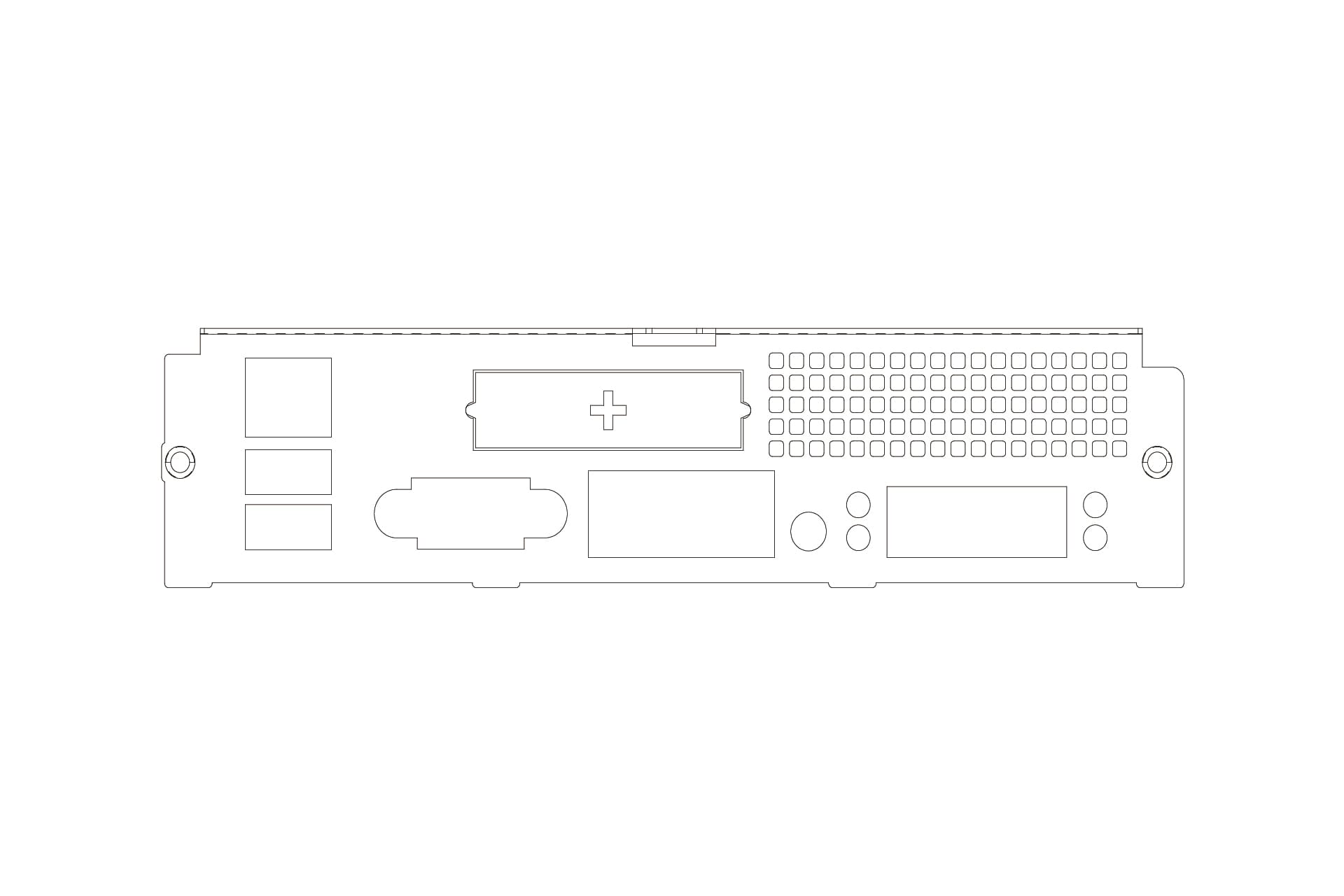

Back I/O Shield Plate2RAKIQ021100Rear I/O shield- Gigabyte MD61-SC21 Back I/O Shield Plate - server system assembly

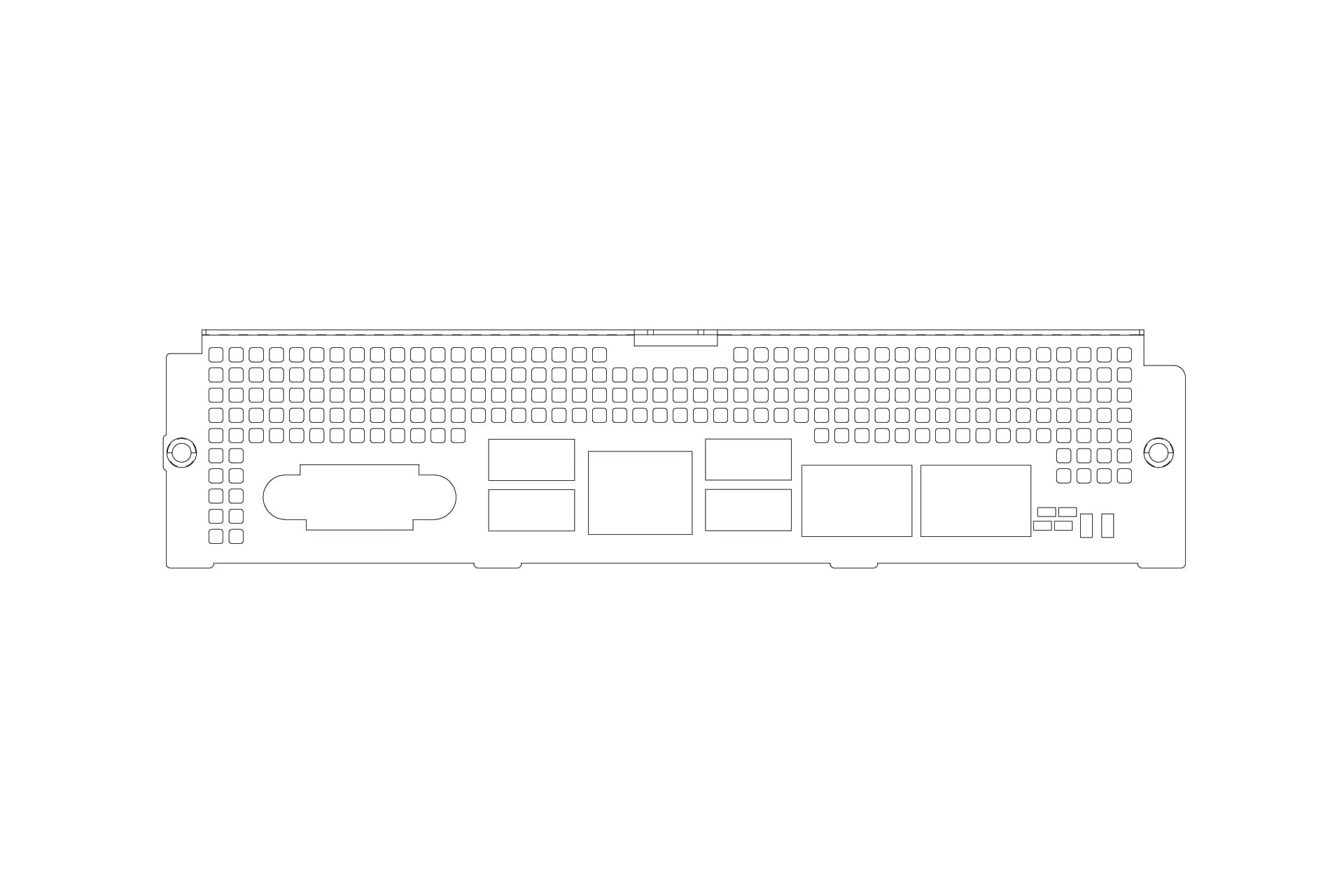

Back I/O Shield Plate2RAKIQ021000Rear I/O shield- Intel H28527 S2600CW2R1 Back I/O Shield Plate - server system assembly

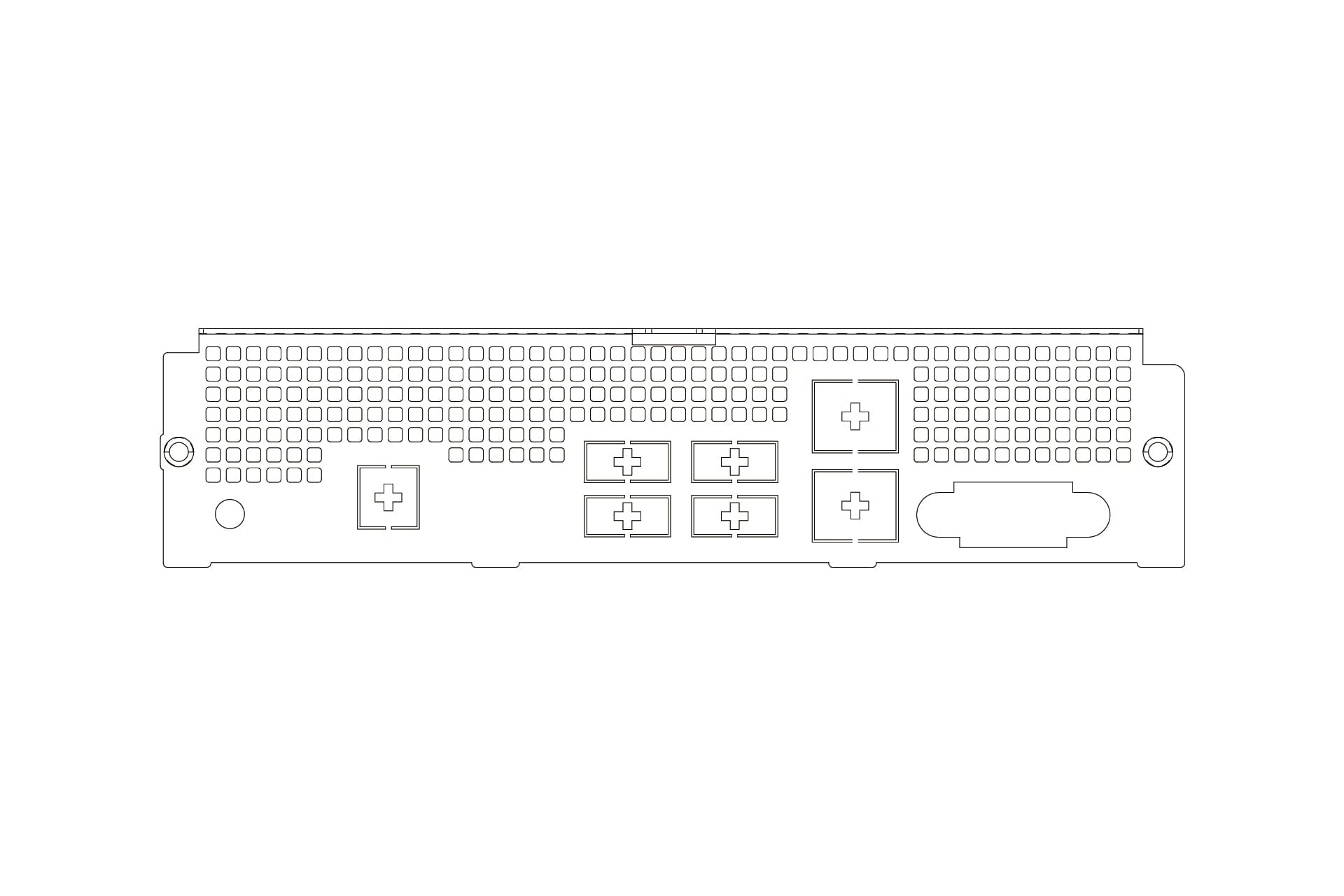

Back I/O Shield Plate2RAKIQ021200Rear I/O shield- Tyan S7100AG2NR1 Back I/O Shield Plate - server system assembly
Back I/O Shield Plate–InWin can customize the I/O Shield back plate for specific motherboards, with SGCC material, to provide the highest flexibility for your computing needs.1

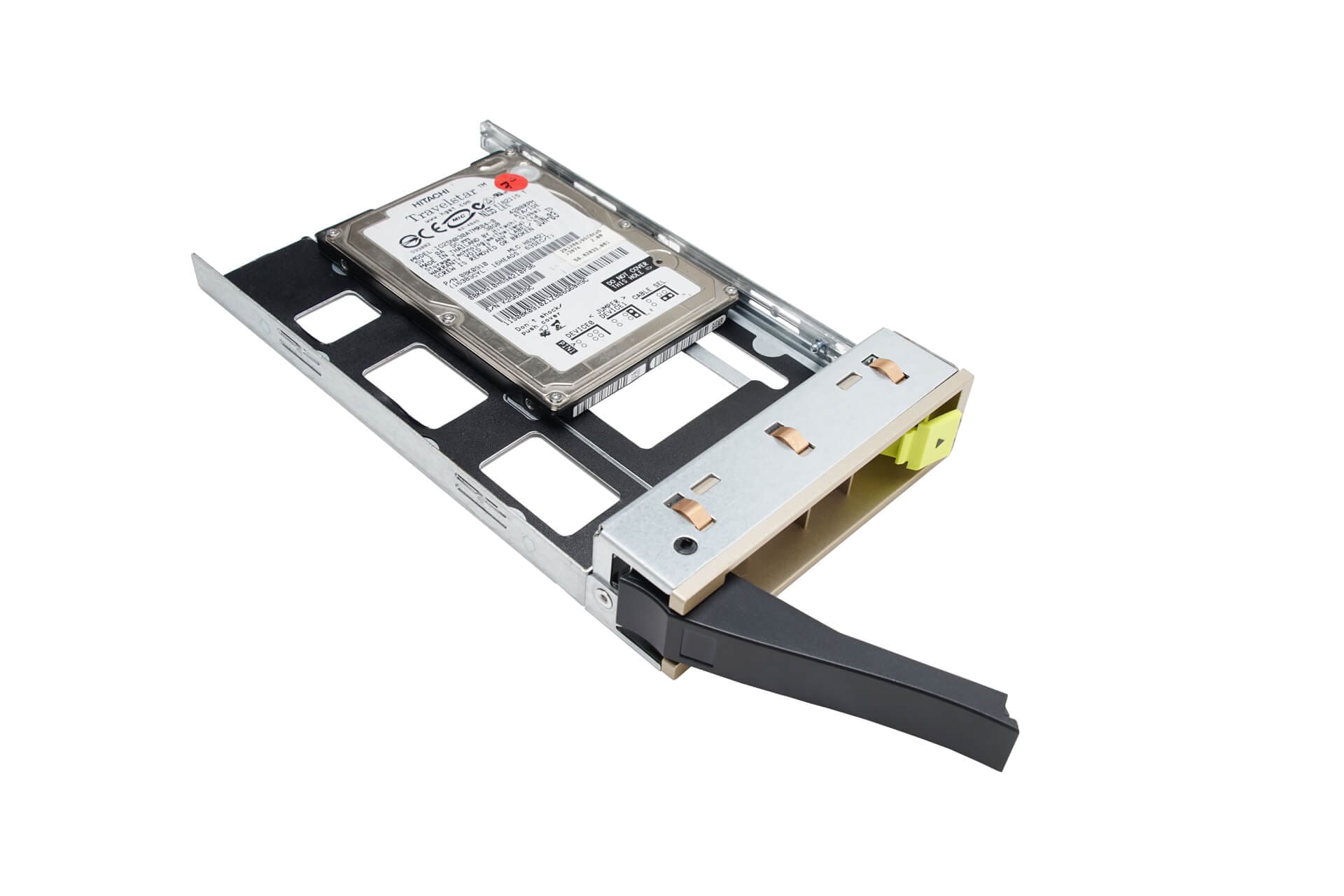

HDD Tray2RAKPH0380012.5″/3.5″ hot-swap HDD tray Max. 4 HDD Tray - server system assembly

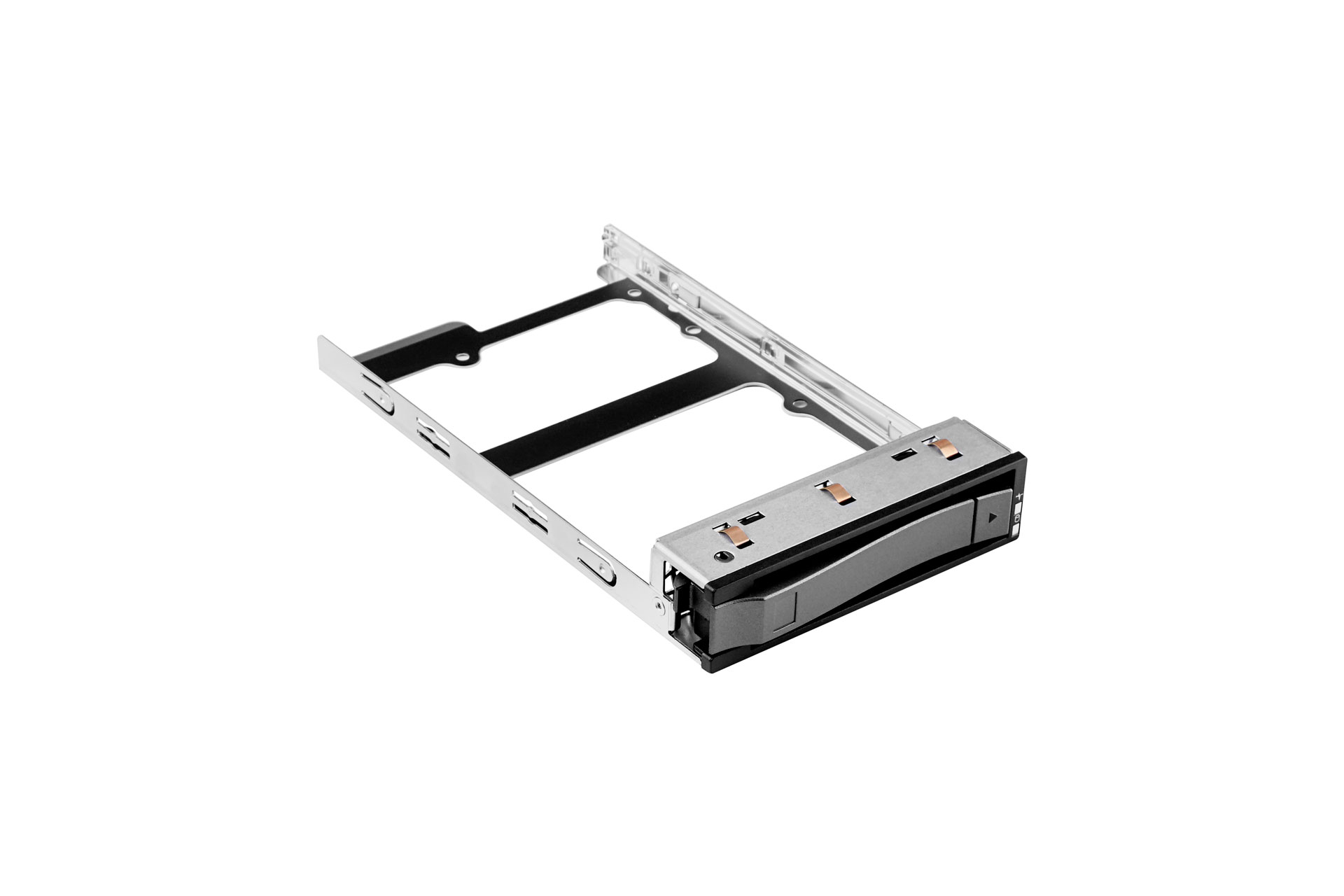

HDD Tray2RAKPH0577012.5″/3.5″ hot-swap HDD tray Max. 4 HDD Tray - server system assembly
HDD Tray2RAKPH0381012.5″/3.5″ hot-swap HDD tray (NVMe)Max. 4 HDD Tray - server system assembly

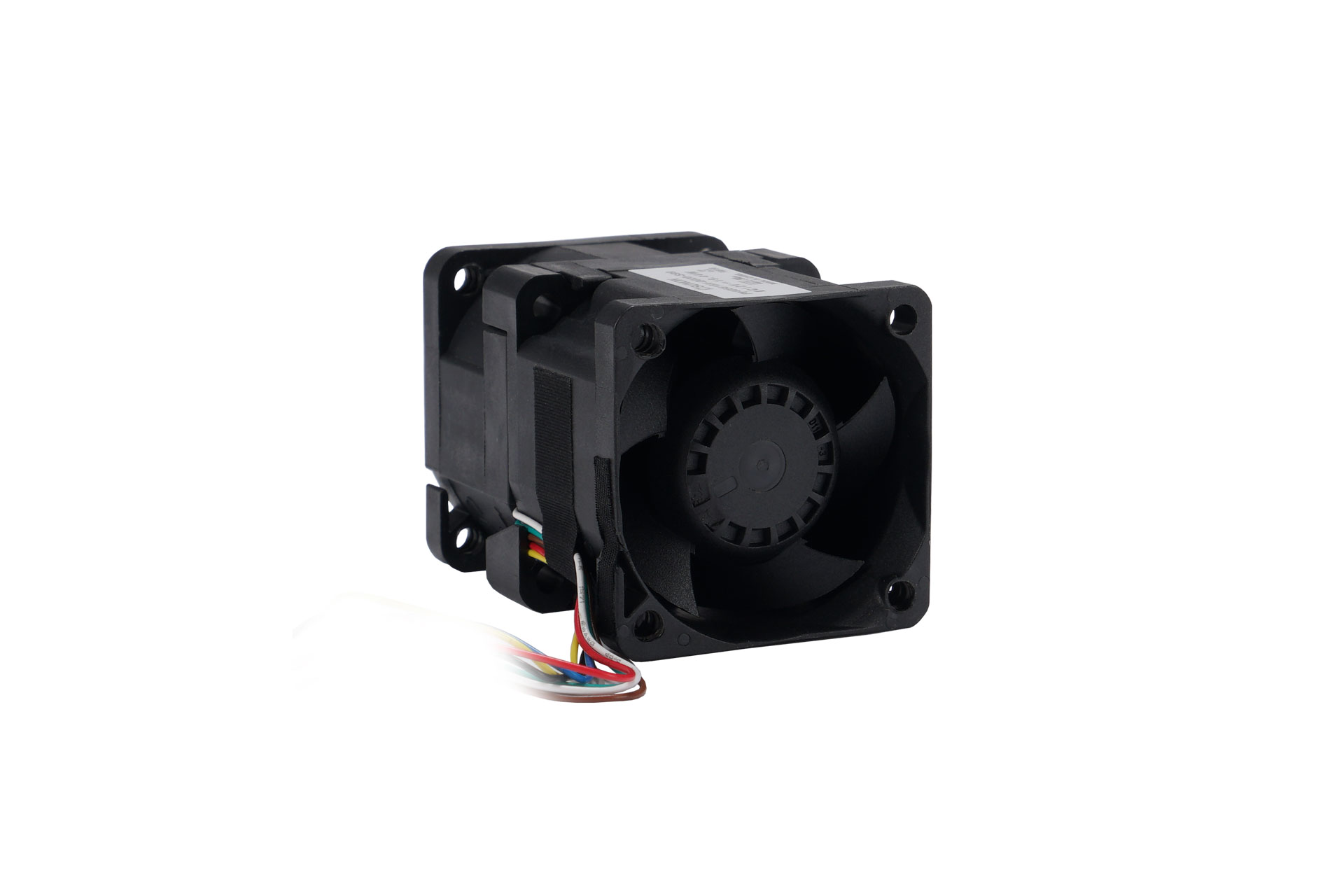

Fan3RAMFB01640040 x 56mm PWM easy-swap fan, 21500RPMMax.6 Fan - server system assembly

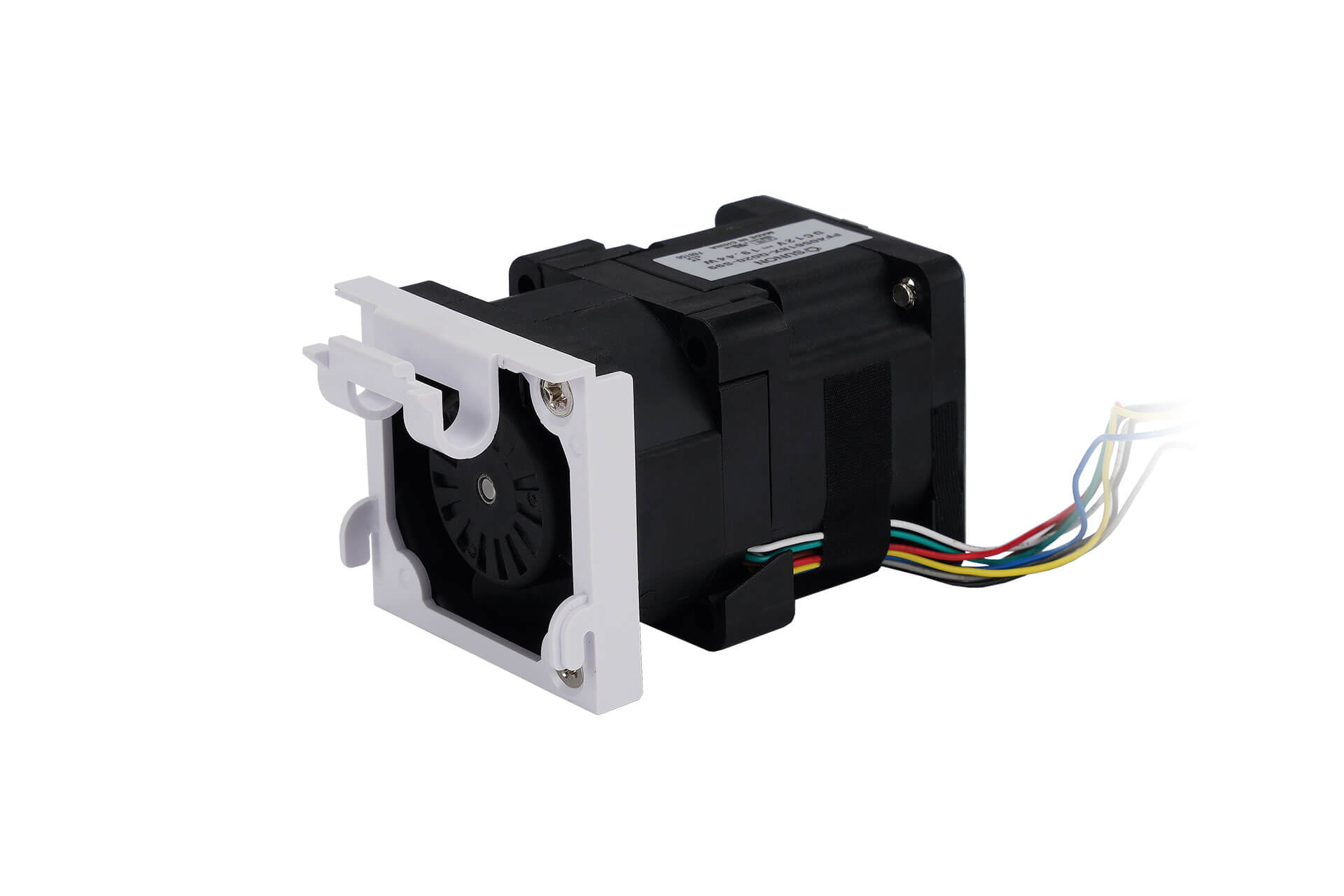

Fan2RAKFB011800 40 x 56mm PWM easy-swap fan & fan bracket Max.6 Fan - server system assembly

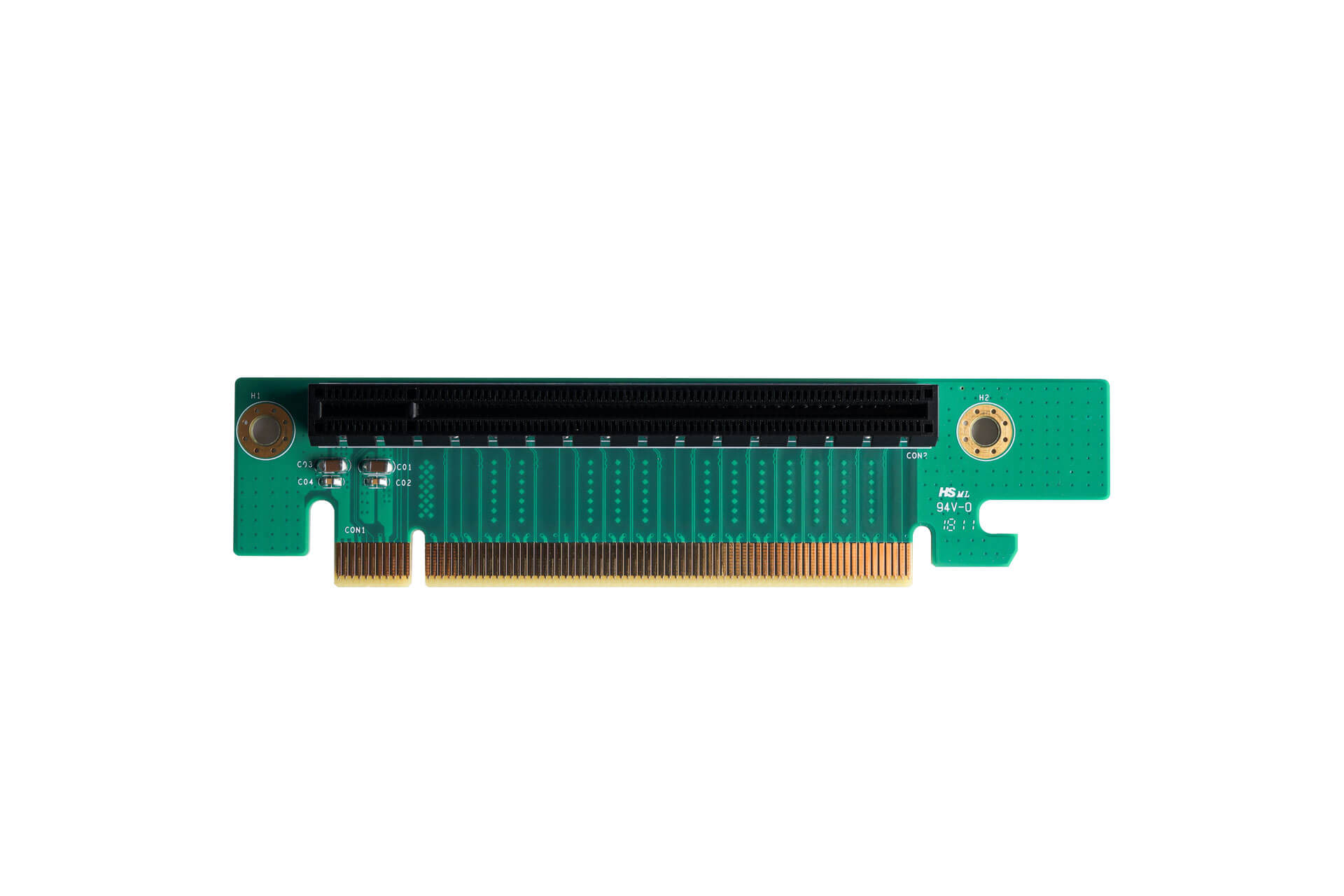

Riser Card3RAMPD038000PCIe Gen3 x16 riser card, left-facing 90 degree design1 Riser Card - server system assembly
Others 2RAKIP012002Mesh front panel1 Others - server system assembly
