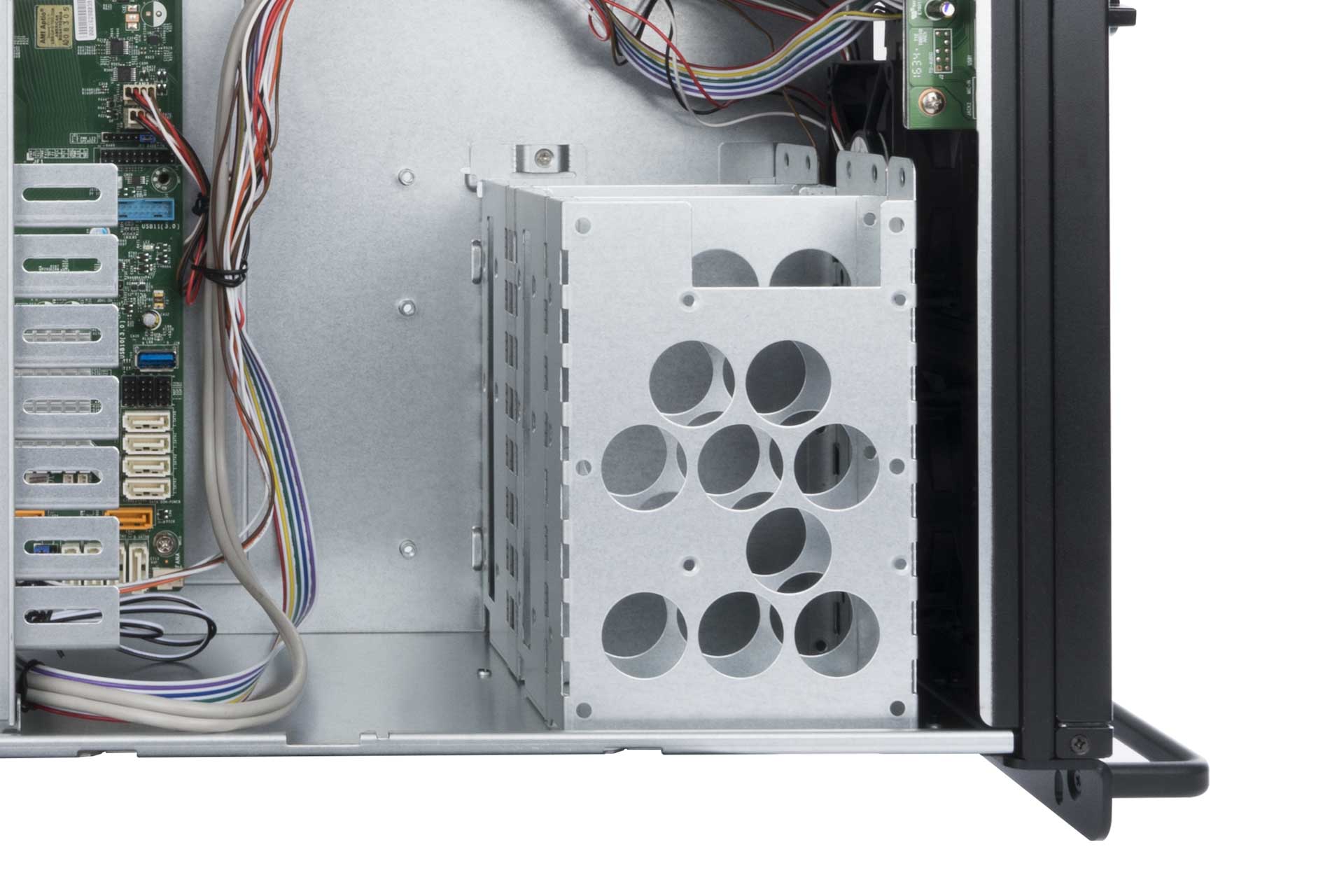

- Flexible drive bays configuration for ODD, 2.5″ and 3.5″ HDD

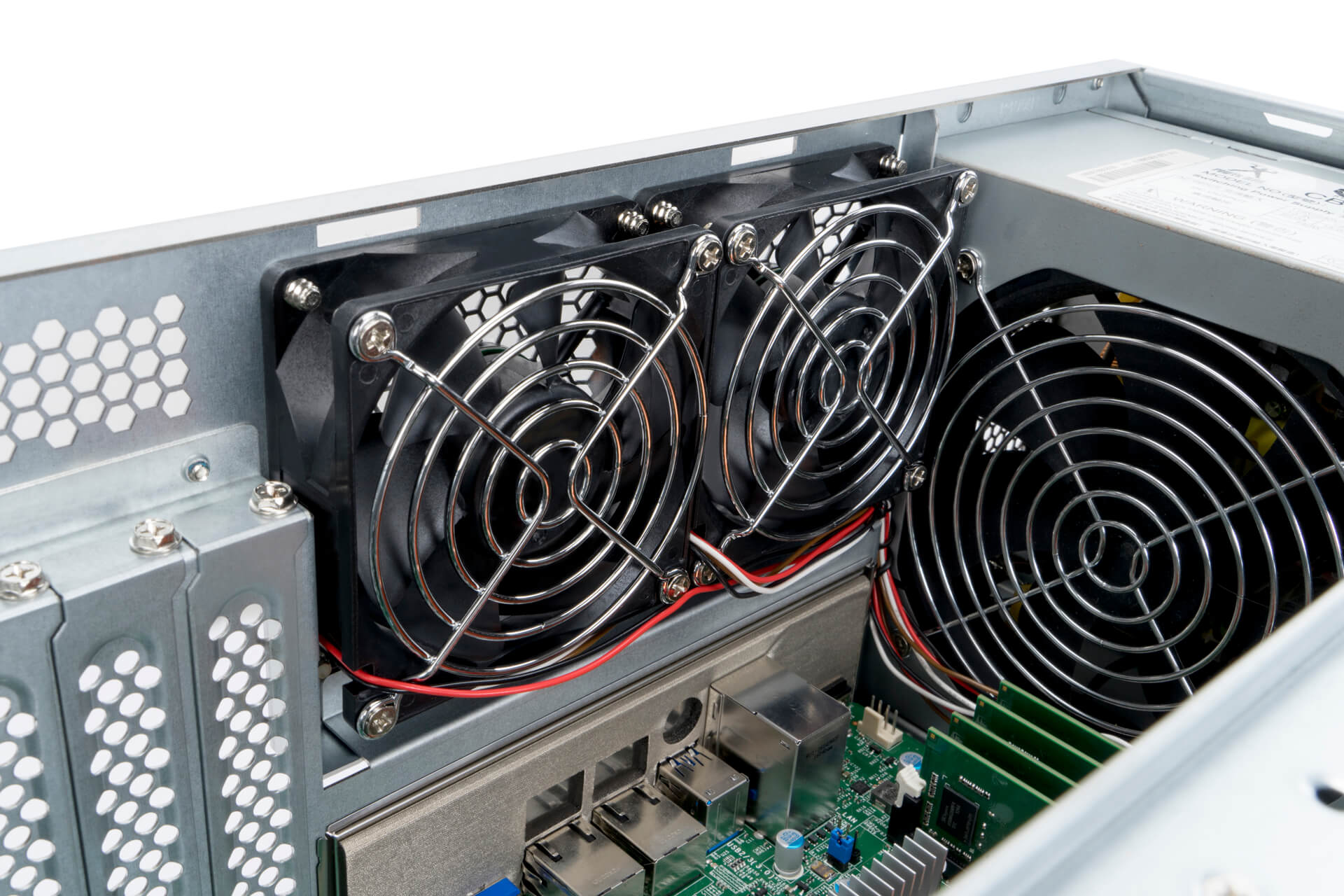

- Supports easy-swap rear fan x 2 for upgrade
- Compatible with standard PS2 or mini-redundant power supply
- Expandable storage option with InWin storage kit
- GPU holder and adjustable card retainer supporting 350mm dual-slot PCIe cards x 4
- Optional rear fan module for GPU
- Convertible to tower with chassis stands (optional)

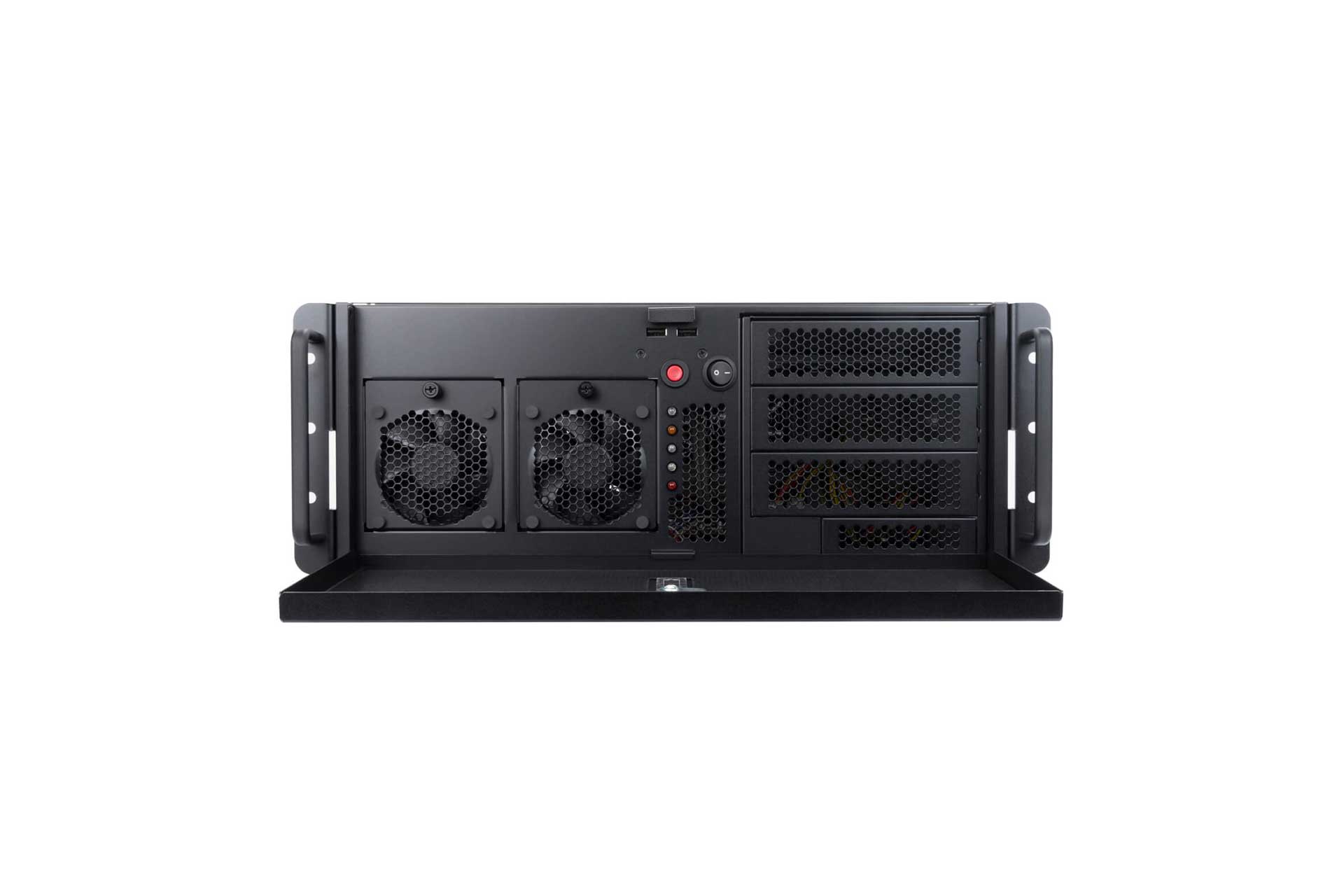

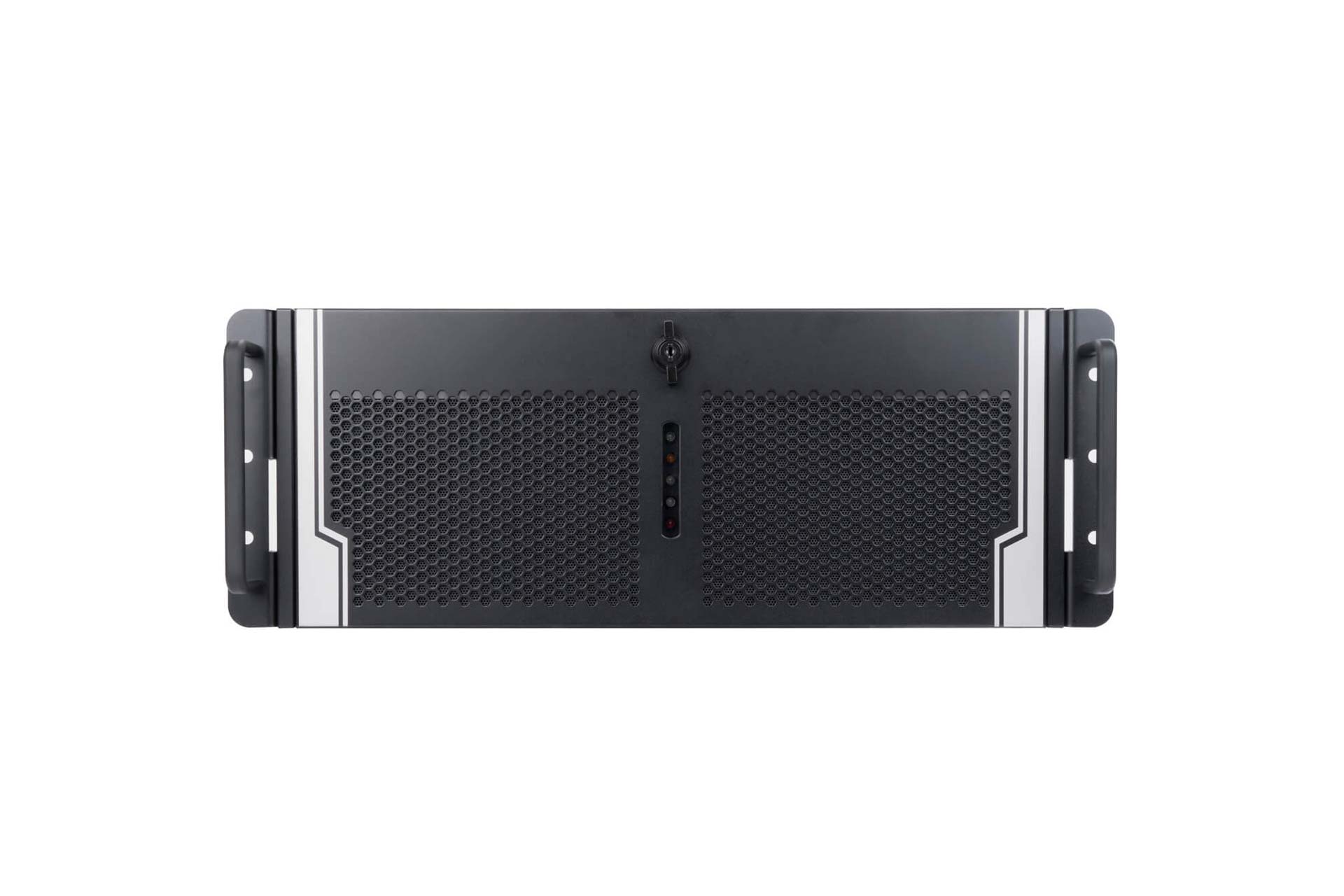

- Lockable front door for data security

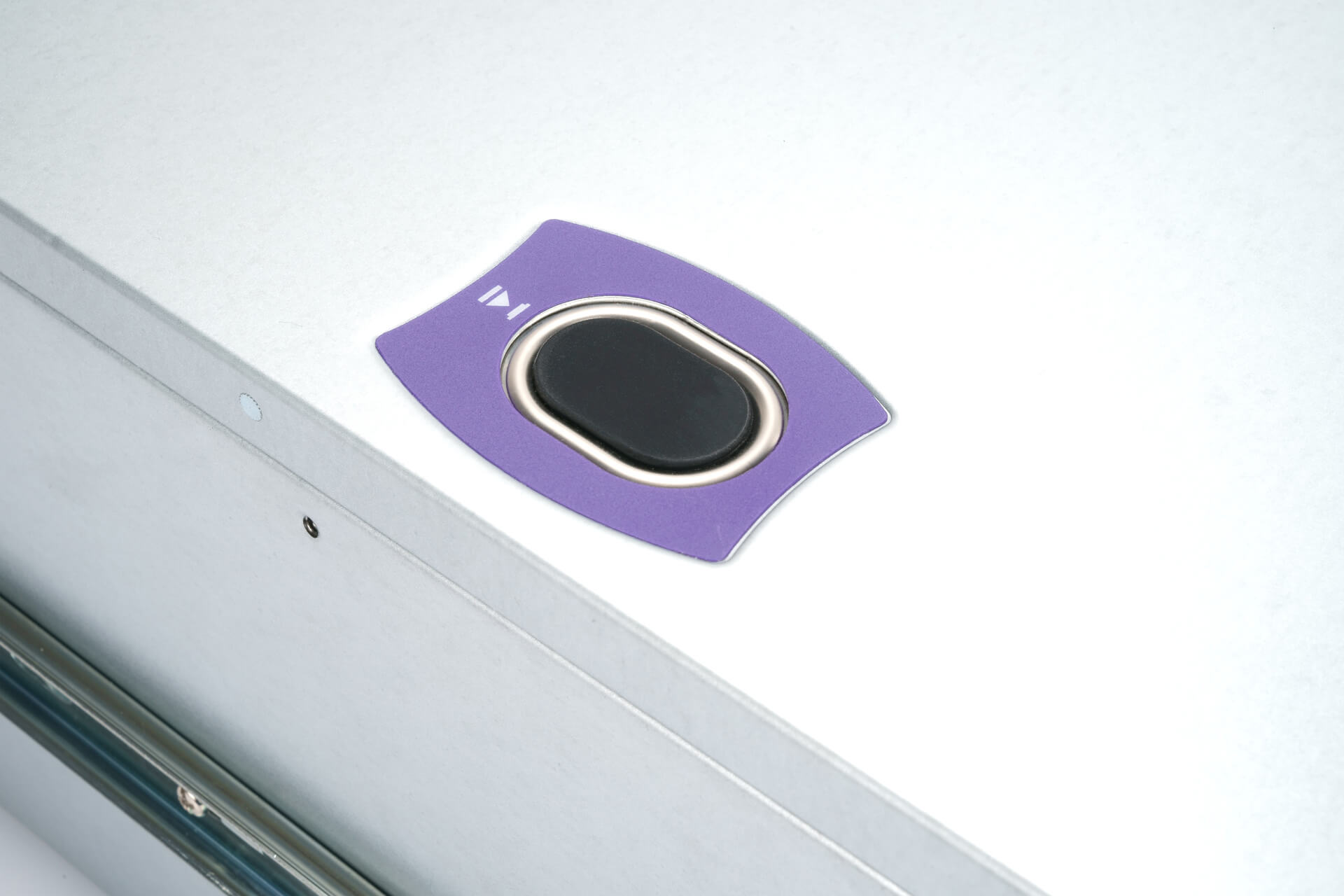

- Tool-free cover for easy installation and quick maintenance
Specifications
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX (12″ x 9.6″), CEB (12″ x 10.5″), EEB (12″ x 13″) *The bottom 5.25 drive bay space should be reserved for the EEB motherboard installation |
| Drive Bay | • External: 5.25″ x 3, 3.5″ x 1 • Internal: 3.5″ x 4, 2.5″ x 1 |
| Power Supply | Supports: • PS2, up to 600W • Optional mini-redundant up to 500W |
| Indicator | Power status, HDD, LAN activity LEDs |
| Front Control Panel | Power switch, System reset, USB 2.0 x 2 |
| Chassis Security | Intrusion switch (optional) |
| Cooling Fan | Supports: • 80 x 25mm PWM front fan x 2, 4500RPM • 80 x 25mm PWM rear fan x 2 (optional), 4200RPM • 80 x 25mm PWM rear fan x 2 (optional), 4500RPM |
| Expansion Slot | Full-height PCI slot x 8 |
| Material | • Material: SGCC • Thickness: 1.2mm |
| Rail Kit | Supports 28″ tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 525x 430 x 174.8mm (20.7″ x 16.9″ x 6.9″) |
| Package Dimensions (DxWxH) | 696 x 610 x 310mm |
| Weight (Chassis Only) | • Net weight: 12.09kg • Gross weight: 15.37kg |
| Cubic Feet | 4.65 |
| Container Information | Single packing with pallets: • 20′: 144pcs • 40′: 300pcs • 40′ HQ: 350pcs |
The above image is for reference only. All hardware components and optional parts are not included.
Download
| Item | Download | Preview |
|---|---|---|
| IW-R400-01N eDM |  |  |
| IW-R400-01N Gallery |
| – |
Optional Items
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS129500 | 28″ tool-less & ball-bearing slide rails (weight capacity 35kg) | 1 |
|
| Power Supply | 3RAMAP021300 | Mini redundant 500W, 80 Plus Bronze | 1 |
|

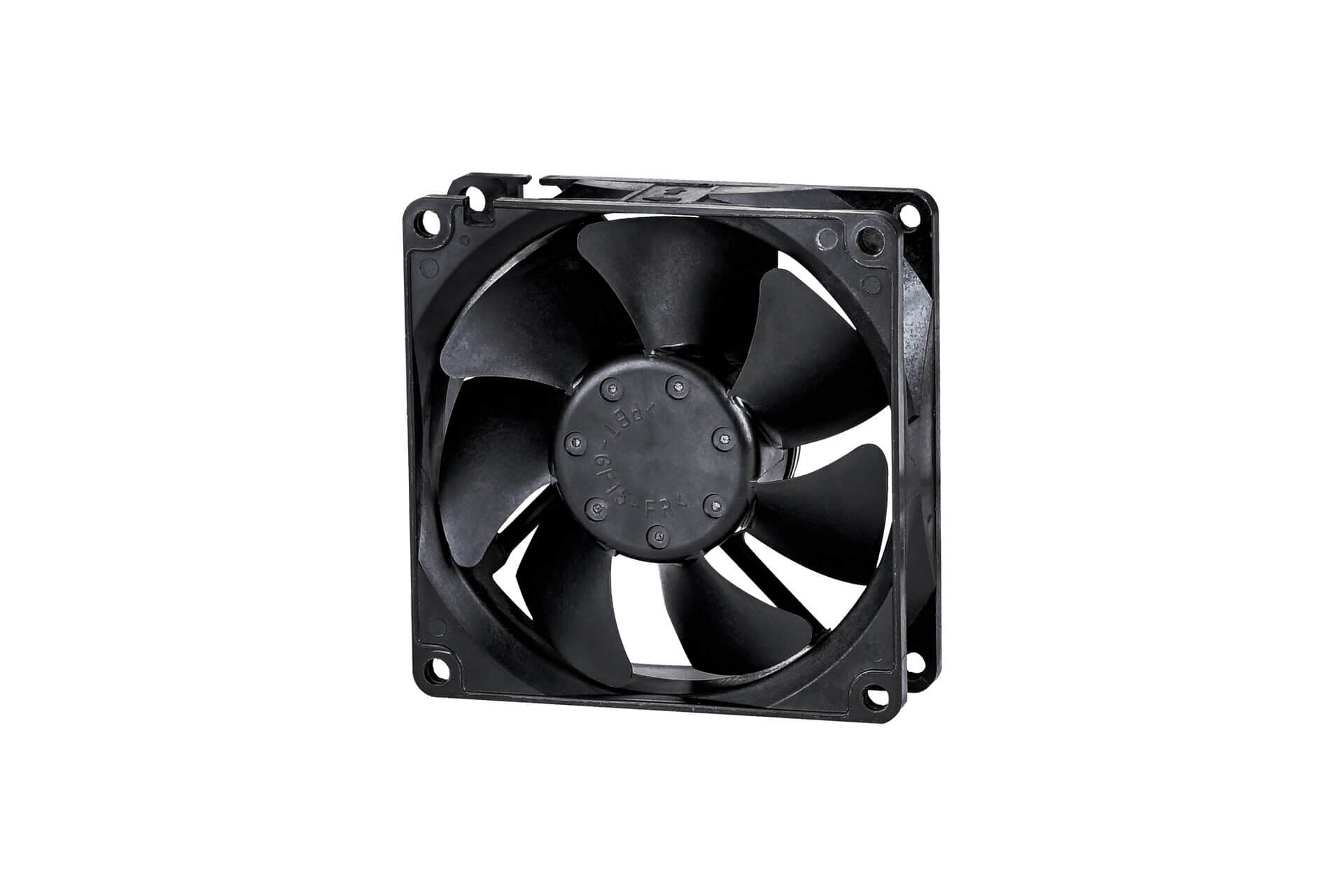

| Fan | 3RAMFB008602 | 80 x 25mm front fan, PWM, 4500RPM | 2 |
|

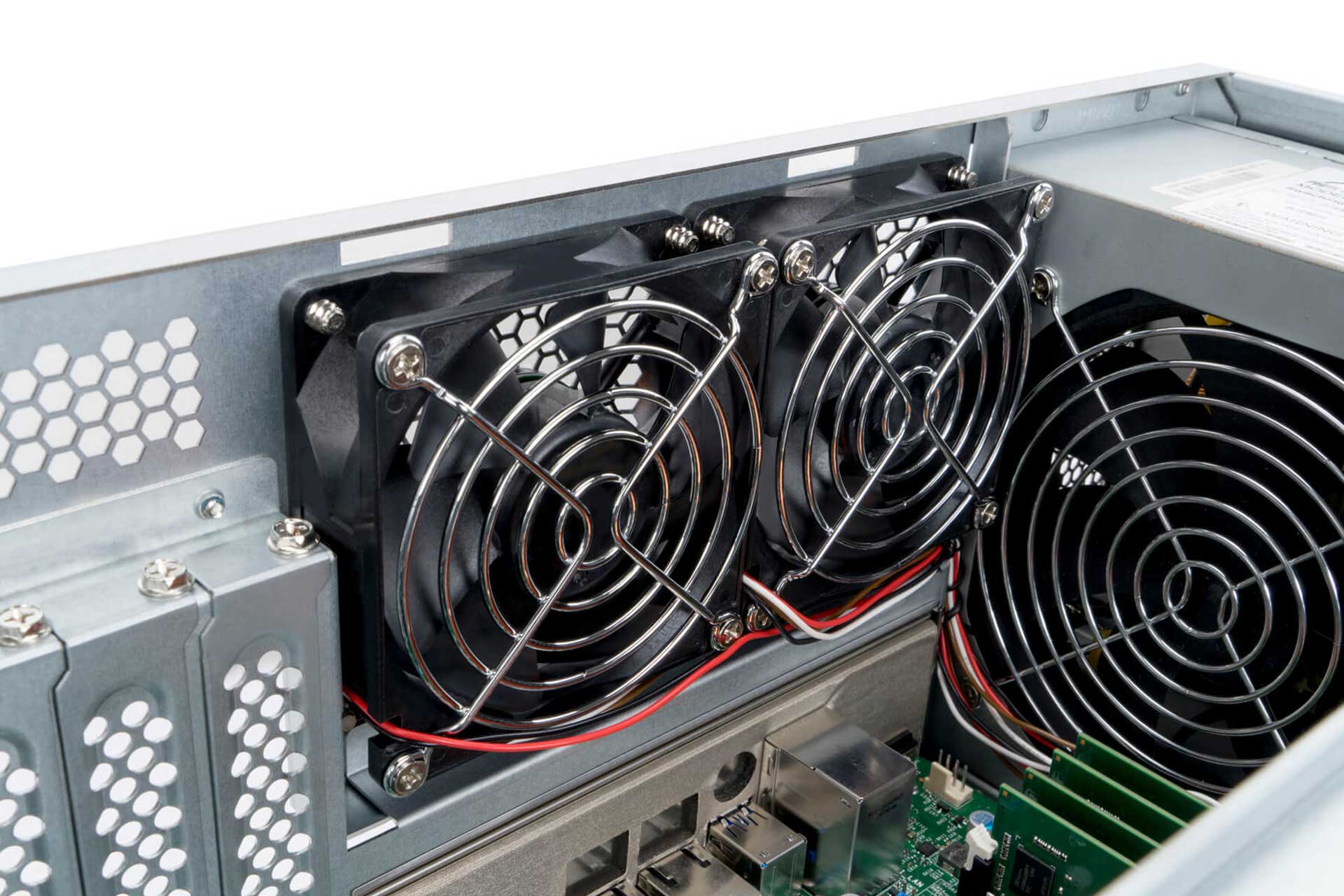

| Fan | 3RAMFB015300 | 80 x 25mm rear fan, PWM, 4200RPM | 2 |
|
| Fan | 3RAMFB014800 | 80 x 25mm rear fan, PWM, 4500RPM | 2 |
|

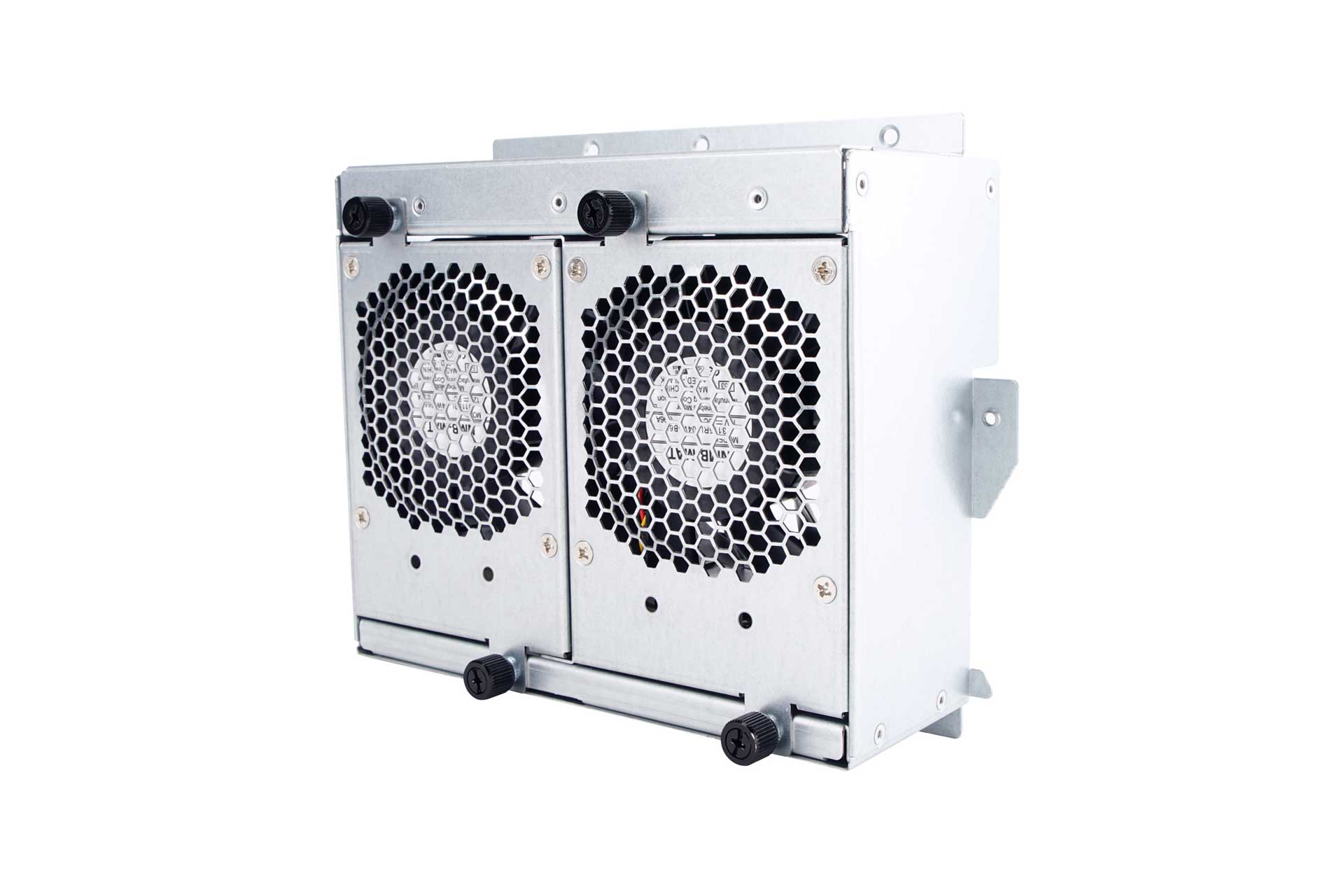

| Fan | 2RAKID059800 | Rear fan kit for GPU thermal, 80 x 38mm, 5500RPM | 1 |
|
| Storage Kit | 2RAKID028200 | IW-SK23-02, 3.5″ hot-swap HDD x 3, SATA III/SAS 6Gb | 1 |
|
| Storage Kit | 2RAKID032701 | IW-SK34-02, 3.5″ hot-swap HDD x 4, SATA III/SAS 6Gb | 1 |
|

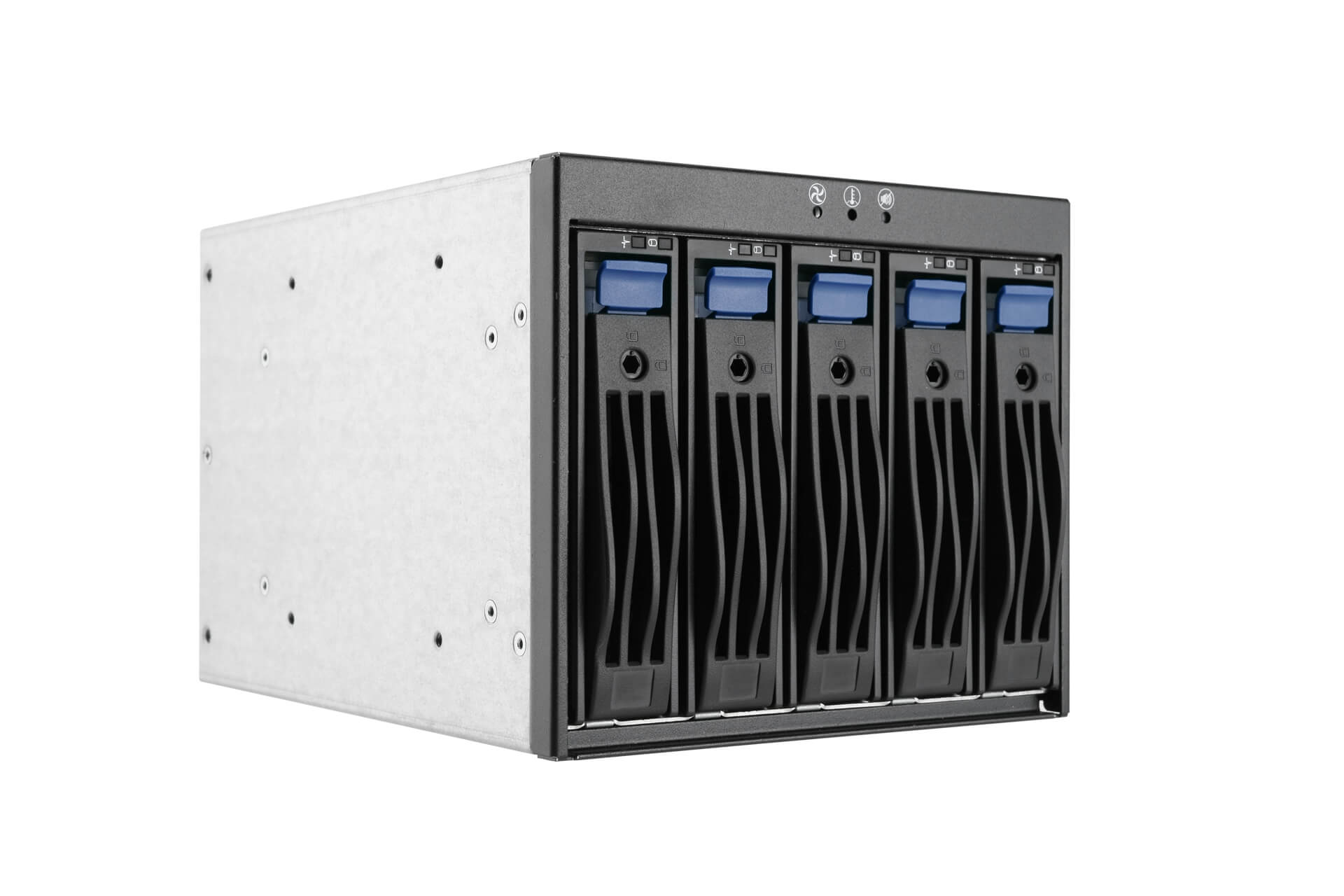

| Storage Kit | 2RAKID062800 | IW-SK35-02, 3.5″ hot-swap HDD x 5, SATA III/SAS 6Gb | 1 |
|
| Others | 3RAMRW011300 | Intrusion switch / 800mm | 1 |
|
| Others | 2RALXX396100 | Foot stands | 1 set |
|
